Aluminum Foil Pinhole Tester
Determine the identification and counting of pinholes, including roll holes, in plain foil using a light table, and inspection with normal vision, and a darkened inspection area.
| Product Model: | YG818-4S |
|---|---|
| Design Standard: | ASTM B926 |
Application:
Aluminum Foil Pinhole Tester determines the identification and counting of pinholes, including roll holes, in plain foil using a light table, and inspection with normal vision, and a darkened inspection area.
Test Standard:
ASTM B926
Features:
1. Test Cabinet Material: Stainless steel
2. With touch screen monitor, can input pinhole size and quantity
3. Thermal printer to print test result
4. Record and store max. 500 groups test data, check by specimen No. and testing time
5. Configuration: Test Cabinet, Magnifying Glass, Touch Screen Monitor, Thermal Printer
Specification:
|
View size |
400*250mm |
|
Illumination |
20 ~ 50lux |
|
Light source power |
30W |
|
Magnify scale value |
0.1mm |
|
Magnification |
100X |
|
Minimum scale value |
0.01mm |
|
Power source |
1-phase, AC220V, 50Hz |
|
Machine size |
800W*600W*300Hmm |
|
Weight |
20kg |
|
Test standard |
ASTM B926 |

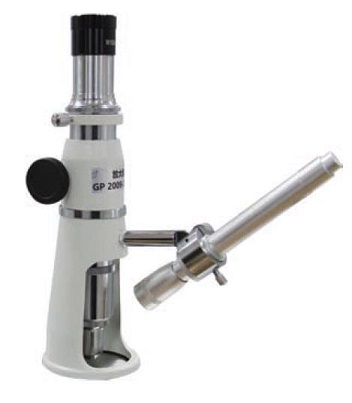

Magnifying Glass:
