R-F614

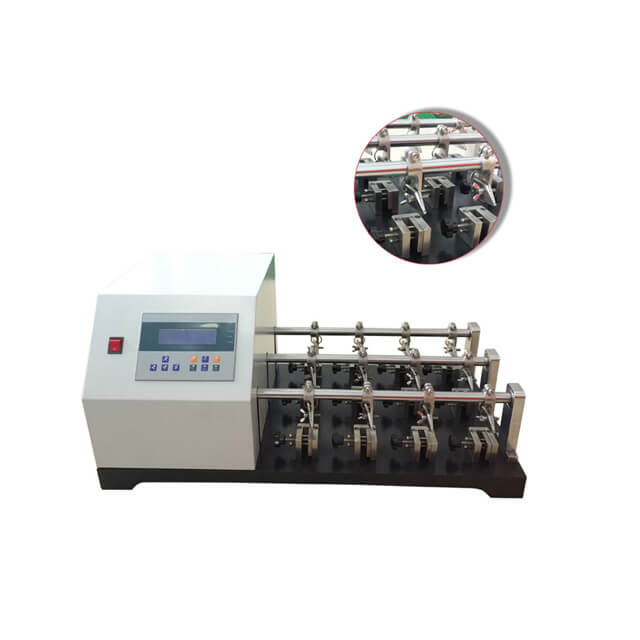

Bally Leather Flexing Tester
Determine the flex resistance of leather and finishes applied to leather, in order to assess the suitability for the end use.
- Product Model
- R-F614
- Design Standard
- ISO 17694, EN ISO 20344, EN ISO 5402, BS 3144, SATRA TM55, ASTM D6182
Description
Application:
Bally Flexing Tester determines the flex resistance of leather and finishes applied to leather, in order to assess the suitability for the end use.
Principle:
A test piece is folded with the surface to be tested inwards and clamped in an upper movable clamp and with the surface to be tested outwards in a lower fixed clamp on Bally Flexing Tester. Movement of the upper clap caused a fold in the test piece to run along it. The test piece is examined periodically for damage.
Test Standard:
ISO 17694, EN ISO 20344, EN ISO 5402, BS 3144, SATRA TM55, ASTM D6182
Specification:
|
Speed |
100±5cpm |
|
Flexing clamps |
12 sets |
|
Specimen size |
70x45mm |
|
Bending angle |
22.5°±0.5° |
|
Counter |
LCD display, 0~9,999,999 |
|
Power source |
830W*400D*330Hmm |
|
Machine size |
1 Phase, AC220V, 50Hz |
|
Weight |
60kg |
