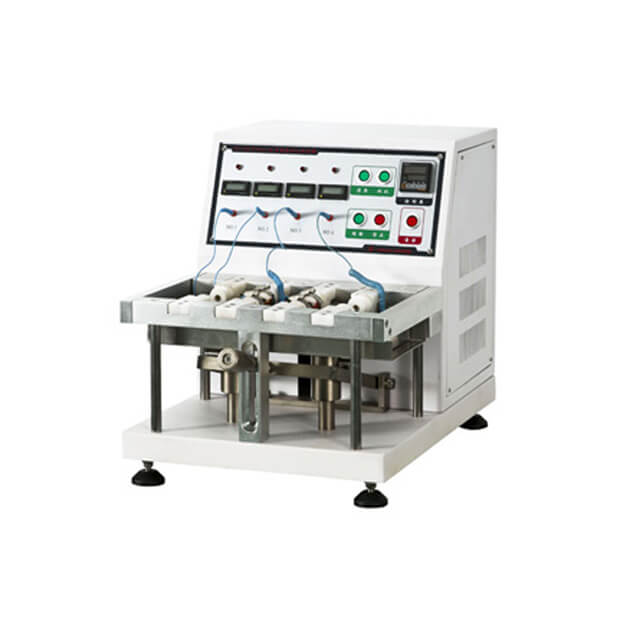

Bally Water Penetration Tester

Application:

Bally Water Penetration Tester determines the resistance of footwear upper material to water penetration on flexing, in order to assess the suitability for the end use.



Test Method:

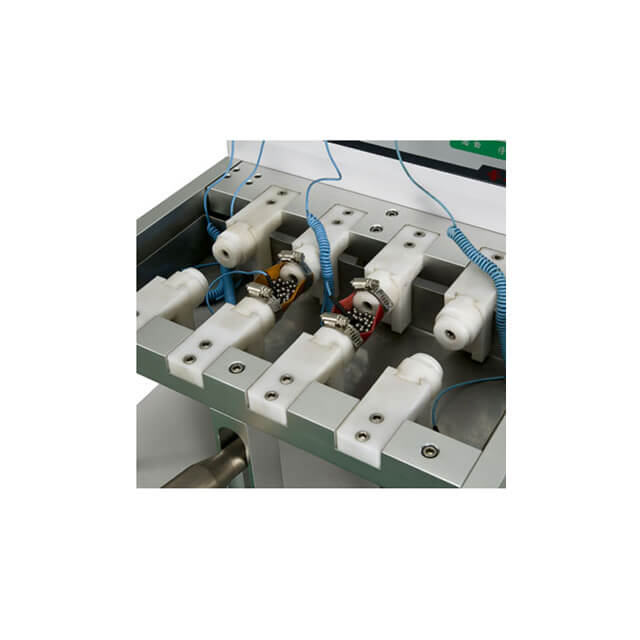

A rectangular test specimen is bent partly round, and secured between, two cylindrical clamps so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. Then time taken for water penetration through the test specimen to occur is recoded. The mass of water absorbed by, and transmitted through, the test specimen can also be measured.



Test Standard:

ISO 17702, EN ISO 20344, DIN 53338, SATRA TM71



Specification:

Test station	4 sets
Displacement	2, 3, 4, 6mm, adjustable
Specimen size	70x60mm
Test speed	50±1cpm
Counter	LCD, 0~999,999
Power source	1 Phase, AC220V, 50Hz
Machine size	420W*600D*510Hmm
Weight	55kg
