R-FM023
Breathing Resistance Tester
Determine the breathing performance of mask, including exhalation resistance and inhalation resistance.
- Product Model
- R-FM023
- Design Standard
- EN 149
Description
Application:
Determine the breathing performance of mask, including exhalation resistance and inhalation resistance.
Test standard:
EN 149
Specification:
| Flowmeter | 0~200L/min, accuracy 3% |
| Digital differential pressure gauge | -1000Pa~1000Pa, accuracy 1Pa |
| Pumping capacity | ≥100L/min |
| Printer | Thermal printer to output test report |
| Controller | PLC touch screen controller |
| Test mode | Exhalation test & inhalation test |
|
Power supply |
1-ph, 220V±10%, 50Hz |
|
Machine size |
680W*600D*1000Hmm |
|
Weight |
50kg |
|
Feature |
-Automatic switching device for respirator pipe to prevent failure operation -3D print dummy heat to improve test accuracy |

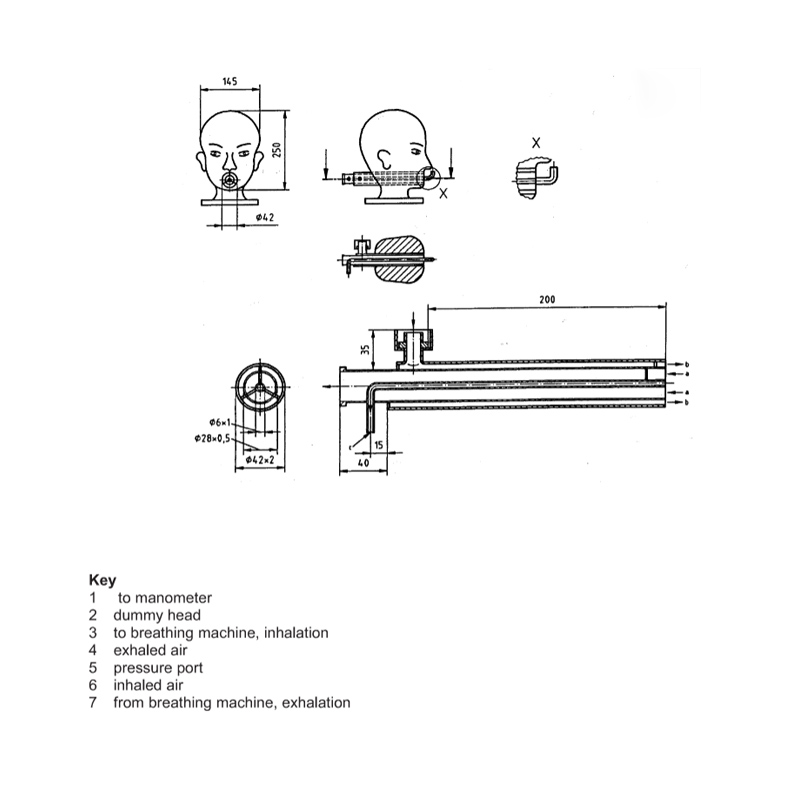

Figure of dummy head:
