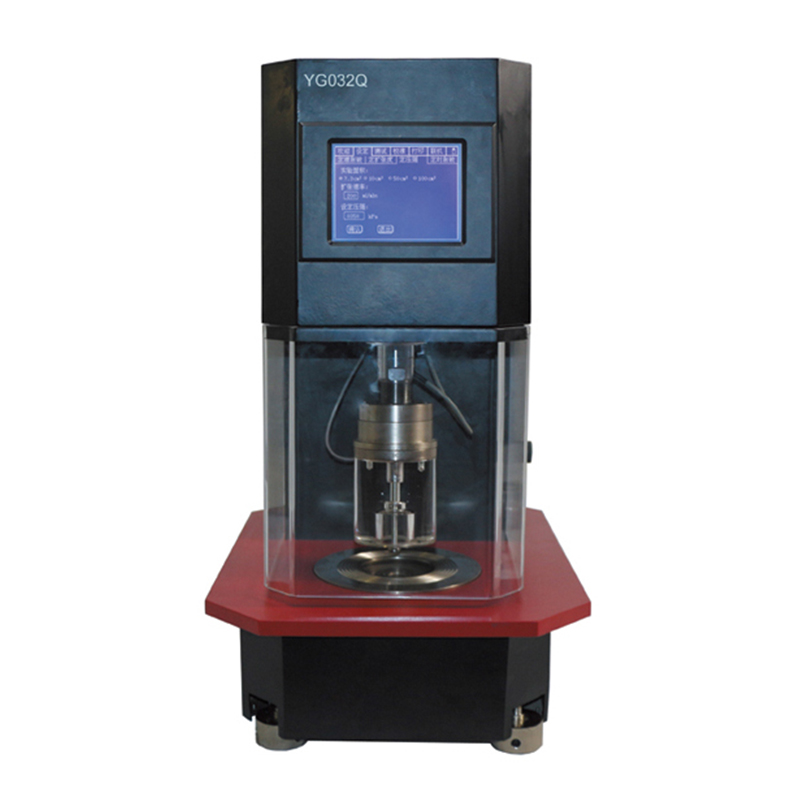

YG032Q
Bursting Strength Tester (Hydraulic Method)
Determine the bursting strength and bursting distension of textile fabrics by hydraulic method.
- Product Model
- YG032Q
- Design Standard
- ISO 13938.1, ASTM D3786, JIS L1018.6.17
Description
Application:
Determine the bursting strength and bursting distension of textile fabrics by hydraulic method. It's applicable to knitted, woven, nonwoven and laminated fabrics.
Test Standard:
ISO 13938.1, ASTM D3786, JIS L1018.6.17
Specification:
|
Test range |
1.2Mpa |
|
Pressure precision |
<0.2% F.S |
|
High precision of expansion |
<0.2% F.S |
|
Test area |
7.3cm2,10cm2, 50cm2, 100cm2 |
|
Max. expansion |
70mm, accuracy 0.01mm |
|
Pressure rate |
20-600ml/min |
|
Pressure unit |
KPa, kg/cm2 , bar, lb/in2 |
|
Power |
AC 220V, 50HZ, 200W (can be appointed) |
