R-FM029
Carbon Dioxide Content of Inhalation Air Tester
Determine the carbon dioxide content of inhalation air. It consists of a breathing machine with solenoid valves controlled by the breathing machine, a connector, a CO2 flowmeter and a CO2 analyser.
- Product Model
- R-FM029
- Design Standard
- EN 149
Description
Application:
Determine the carbon dioxide content of inhalation air. It consists of a breathing machine with solenoid valves controlled by the breathing machine, a connector, a CO2 flowmeter and a CO2 analyser.
Test standard:
EN 149
Specification:
|
Machine breathing frequency |
10~40 cycles/min, adjustable |
|
Simulation |
0.5~3.0L/min |
|
CO2 content of exhaled air |
5.0±0.1% |
|
CO2 flowmeter range |
>40L/min |
|
CO2 analyser range |
>12%, accuracy >0.1% |
|
Air flow |
0.5m/s |
| Operation system |
PC with software; Real-time calculate and display CO2 content; Test report automatic store to PC |
|
Power supply |
1-phase, 220V±10%, 50Hz |

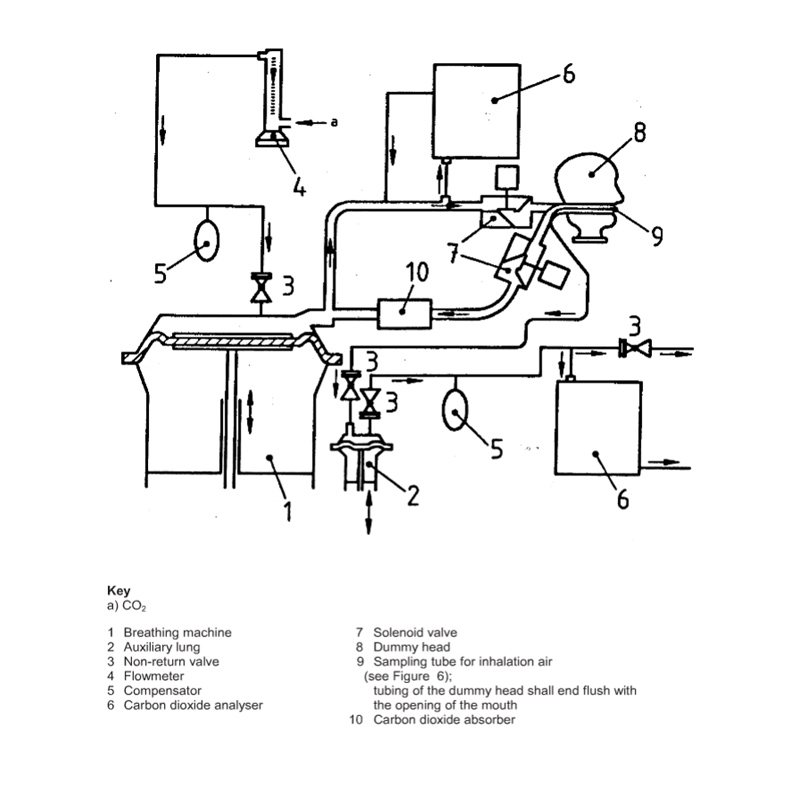

Figure of test apparatus:
