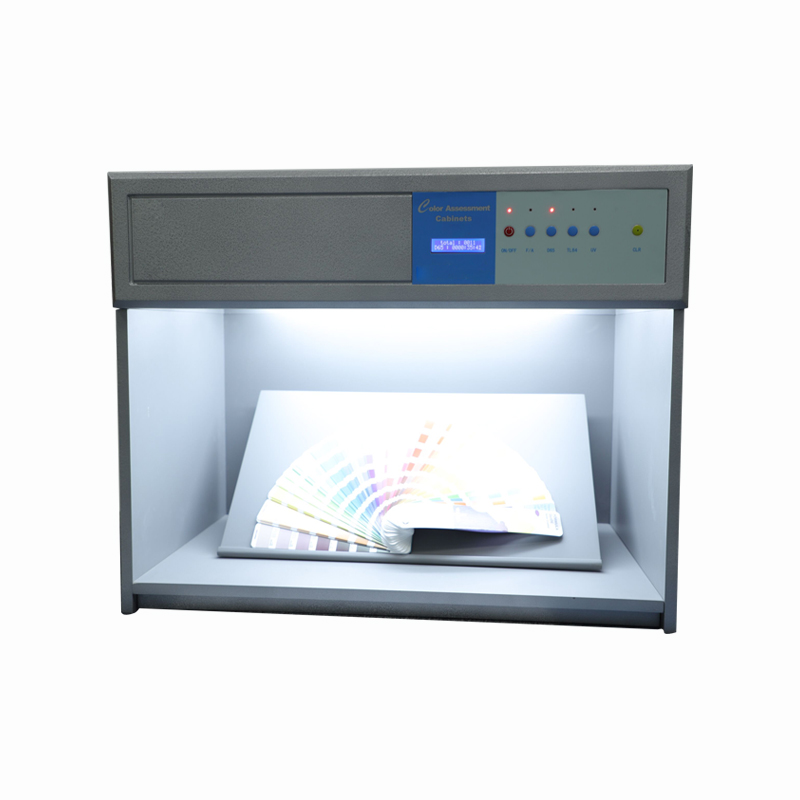

YG818-4
Color Assessment Cabinet
Visual assess the colors and color differences of materials which are diffusely illuminated.
- Product Model
- YG818-4
- Design Standard
- ASTM D1729, BS 950 Part A, SAE J361, TAPPI 7515
Description
Application:
Color Assessment Cabinet is used to visual assess the colors and color differences of opaque materials that are diffusely illuminated. It consists of luminaries or viewing booth, specimen table, surround, and ambient field having spectral, photometric, and geometric characteristics.
Test Standard:
ASTM D1729, BS 950 Part A, SAE J361, TAPPI 7515
Specification:
|
Light source |
D65 (Artificial Daylight), Color temp 6500K, power 18W |
|
TL84, Color temp 4000K, power 18W |
|
|
F, Color temp 2700K, power 40W |
|
|
UV (Ultra-Violet) , wavelength 365nm, power 20W |
|
|
Power source |
1 Phase, AC220V, 50Hz |
|
Machine size |
710×405×570 mm |
|
Weight |
28kg |
|
Accessory |
Pantone, optional |
