YG141G

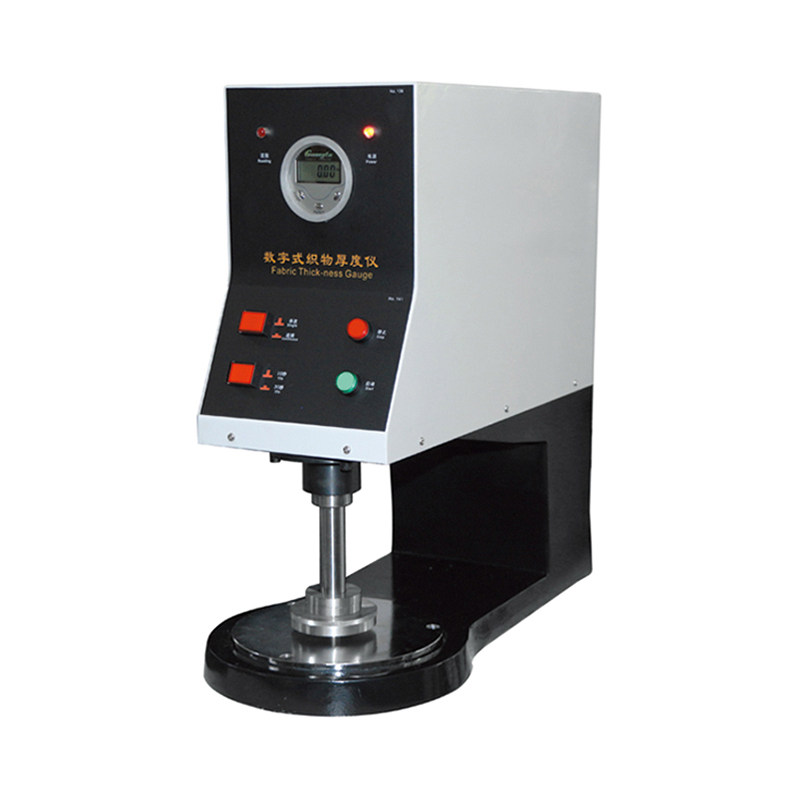

Digital Fabric Thickness Meter
Measure the thickness of textile product under different pressures.
- Product Model
- YG141G
- Design Standard
- ISO 5084, ISO 9073, ISO 9863, ASTM D1777
Description
Application:
Measure the thickness of textile product under different pressures.
Test Standard:
ISO 5084, ISO 9073, ISO 9863, ASTM D1777
Specification:
|
Thickness range |
0.01~20.00mm |
||||
|
Presser foot diameter (mm) |
7.98 |
11.28 |
25.22 |
35.68 |
50.46 |
|
Presser foot area (mm2) |
50 |
100 |
500 |
1,000 |
2,000 |
|
Loading weights |
25cN x 1pc, 50cN x 2pcs, 100cN x 2pcs, 200cN x 1pc, 1000cN x 2pcs |
||||
|
Loading time |
10s, 30s |
||||
|
Power source |
1 Phase, AC220V, 50Hz, 100W |
||||
|
Machine size |
410W*160D*395Hmm |
||||
|
Weight |
25kg |
||||
