R-F610

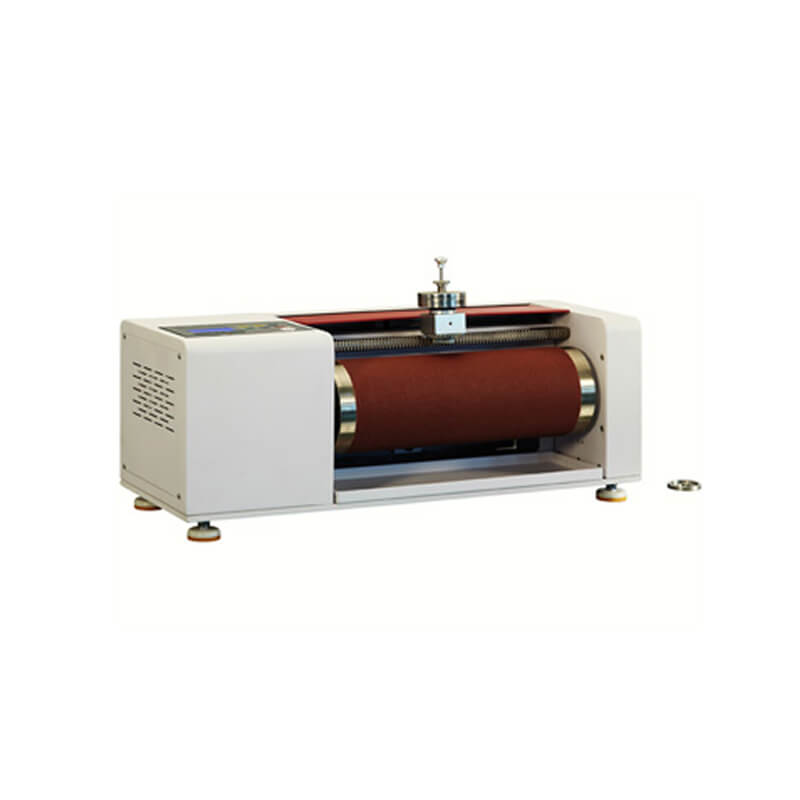

DIN Abrasion Tester
Determine the resistance of rubber to abrasion by means of a rotating cylindrical drum device.
- Product Model
- R-F610
- Design Standard
- EN ISO 20344,ISO 4649,DIN 53516, BS 903:A9, SATRA TM 147
Description
Application:
DIN Abrasion Tester determines the resistance of rubber to abrasion by means of a rotating cylindrical drum device.
Principle:
A cylindrical rubber test piece is made to slide over an abrasive sheet of specified abrasive grade at a same specified contact pressure over a given distance.
Test Standard:
EN ISO 20344,ISO 4649,DIN 53516, BS 903:A9, SATRA TM 147
Specification:
|
Cylinder diameter |
150mm |
|
Abrasion stroke |
40±0.2m |
|
Stroke setting |
20m / 40m |
|
Fixture lateral displacement |
4.20±0.04rpm |
|
Rotation speed |
40±1cpm |
|
Rotation method |
Auto / manual |
|
Loading |
2.5N, 5N, 10N (±0.1N) |
|
Control system |
LCD controller |
|
Abrasive sheet |
60# German origin |
|
Machine size |
95*66*31cm |
|
Weight |
55kg |
|
Power source |
1-phase, AC220V, 50Hz |
