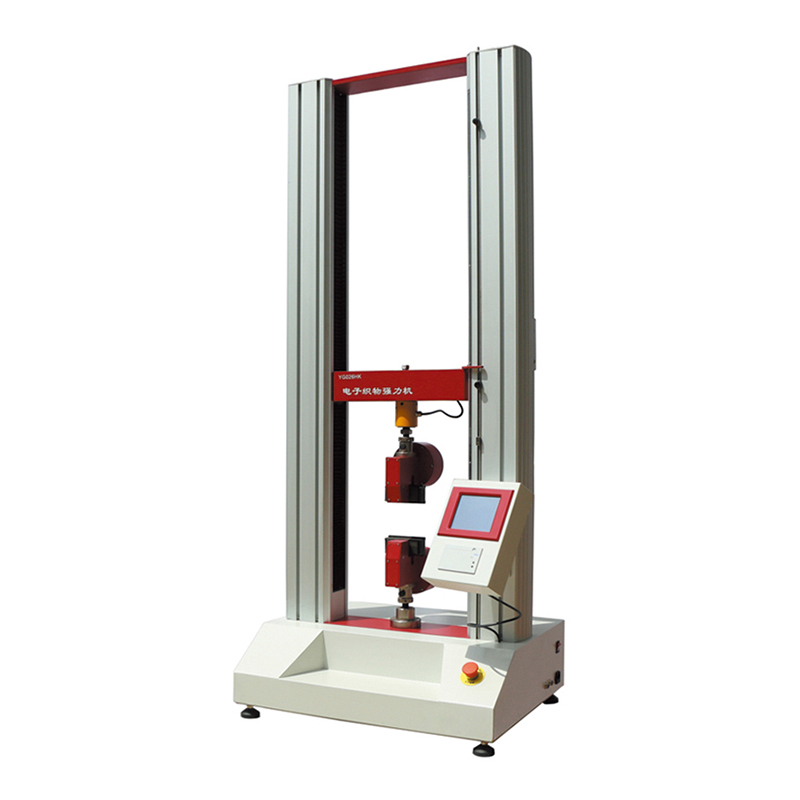

YG026HK
Double Column Universal Tensile Tester
For all kinds of textile tensile, tear, bursting, elongation, load, elastic, seam, slippage and stripping test which widely used in rubber, plastics, leather, metal, wire, paper& package etc. material.
- Product Model
- YG026HK
- Design Standard
- ISO 13934.1, ISO 13934.2, ASTM D5035, ASTM D5034, ASTM D2261, ASTM D5587, ASTM D1683, ASTM D4964
Description
Application:
For all kinds of textile tensile, tear, bursting, elongation, load, elastic, seam, slippage and stripping test which widely used in rubber, plastics, leather, metal, wire, paper& package etc. material.
Test Standard:
ISO 13934.1, ISO 13934.2, ASTM D5035, ASTM D5034, ASTM D2261, ASTM D5587, ASTM D1683, ASTM D4964
Specification:
|
Range |
50N, 500N, 1000N, 2500N, 5000N, 10000N |
|
Test method |
Principle of constant speed elongation (CRE) |
|
Force range |
1-100% of full range |
|
Force measuring accuracy |
Less than 0.2% F-S |
|
Effective acquisition frequency |
1000 times/s |
|
The resolution of the force value |
1/100,000 |
|
Displacement speed |
0.001-1,000mm/min digital speed control, error less than 1% |
|
Displacement resolution |
0.001mm |
|
Sample fixture |
Manual clamping & pneumatic clamping |
|
Max. stroke |
1,100mm (without fixture) |
|
The width of two column |
400mm |
|
Power |
AC 220V, 50HZ, 500W (can be appointed) |
Test Condition:
|
Category |
Standard |
Standard name |
Speed (mm/min) |
Clip distance (mm) |
Sample size (L x W) (mm) |
|
Textile & Fabric |
ASTM D5035 |
Test method for breaking strength & elongation of textile fabrics |
300 |
75 |
25 x 150 |
|
ASTM D5034 |
Determination of the strength & expansion of the joints of knitted & elastic woven fabrics |
300 |
75 |
100 x 150 |
|
|
ASTM D2261 |
Test standard test method for tearing strength of fabrics by the tongue |
50/300 |
75 |
75 x 200 |
|
|
ASTM D5587 |
Standard test method for tearing strength of fabrics with trapezium method |
300 |
25 |
75 x 150 |
|
|
ASTM D1683 |
Standard test method for fracture of weave fabric joints |
305 |
75 |
100 x 350 |
|
|
ASTM D4964 |
Tensile & elongation test of elastic fabric |
500 |
250 |
100 x 350 |
|
|
Textile & Fabric |
BS EN ISO 13934.1 |
Determination of breaking strength & elongation at break by strip method |
100 |
200 |
50 x 200 |
|
BS EN ISO 13934.2 |
Determination of breaking strength & elongation at break by grasping the sample method |
50 |
100 |
100 x 200 |
