YG290A

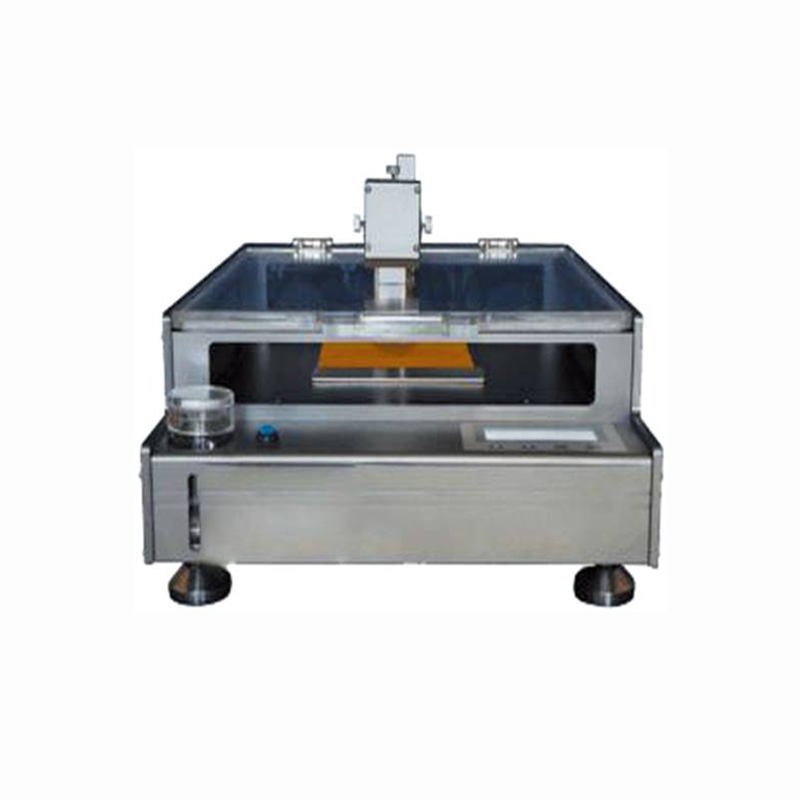

Drying Rate Tester
Determine the drying rate of textile fabrics based on evaporative rate, which happens when the fabric specimen contacts with a defined amount of water on the surface of heated metal plate at a constant temperature.
- Product Model
- YG290A
- Design Standard
- AATCC 201
Description
Application:
Drying Rate Tester determines the drying rate of textile fabrics which exposed to a defined volume of water, and contact with a heated plate with constant temperature 37℃ (99℉). It's the skin surface temperature of human body.
Drying Rate Testers applies to all kinds of fabrics, including woven, non-wovens and knits, as well as fabrics taken from end products.
Test Standard:
AATCC 201
Specification:
|
Heating plate temperature |
37±1℃, resolution ±0.01℃ |
|
Wind speed |
1.5±0.1m/s |
|
Infrared temperature sensor |
15~50℃ (±0.1℃) |
|
Testing fabric thickness |
0~10mm |
|
Water drip |
0.2±0.001ml (adjustable) |
|
Data output |
WIFI & PC |
|
Power source |
1 Phase, AC220V, 50Hz, 100W |
|
Machine size |
520W*400D*260Hmm |
|
Weight |
30kg |
