R-F607

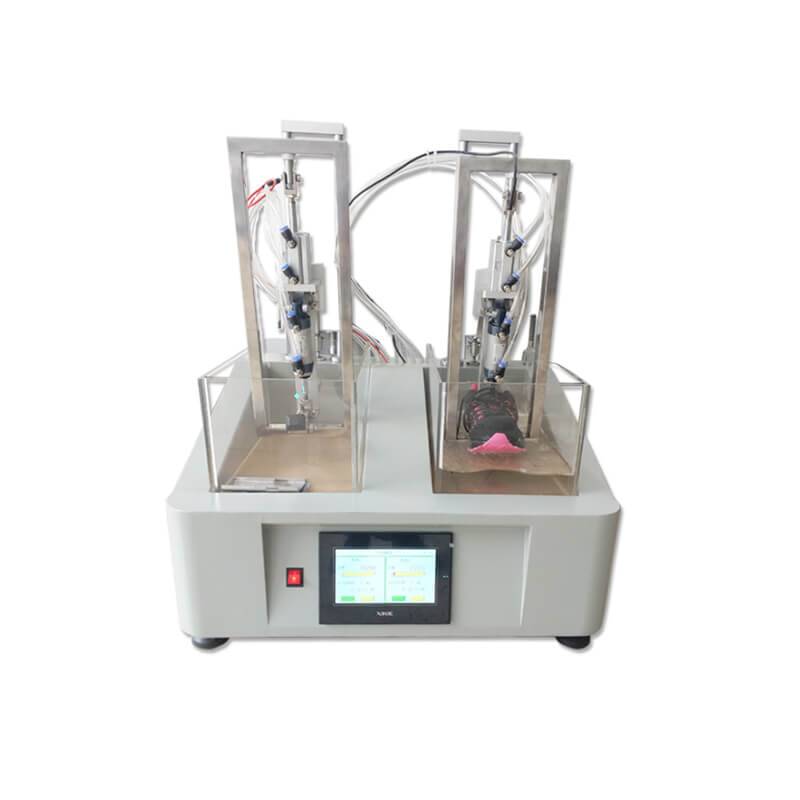

Dynamic Footwear Water Penetration Tester
Evaluate the degree of water resistance of footwear, which applicable to all types of shoes and boots.
- Product Model
- R-F607
- Design Standard
- ISO 20344, SATRA TM 230
Description
Application
The equipment evaluates the degree of water resistance of footwear, which applicable to all types of shoes and boots.
Test Method
The footwear is secured in the flexing machine with water at a defined level above the featherline. The footwear is flexed at s constant rate and inspected at intervals for water penetration.
Test Standard
ISO 20344, SATRA TM 230
Specification
|
Model |
R-F607 |
|
Test station |
2 sets |
|
Flexing angle |
22±5° |
|
Flexing speed |
60±6CPM |
|
Controller |
PLC touch screen controller |
|
Counter |
0~999,999, each test station counts independently |
|
Drive mode |
Pneumatic drive |
|
Water tank size |
400*200*200mm |
|
Machine size |
800W*600D*880Hcm |
|
Weight |
100kg |
|
Power source |
1-phase, AC220V, 50Hz, 20W |
|
Air source |
≥6 bar, prepared by customer |
