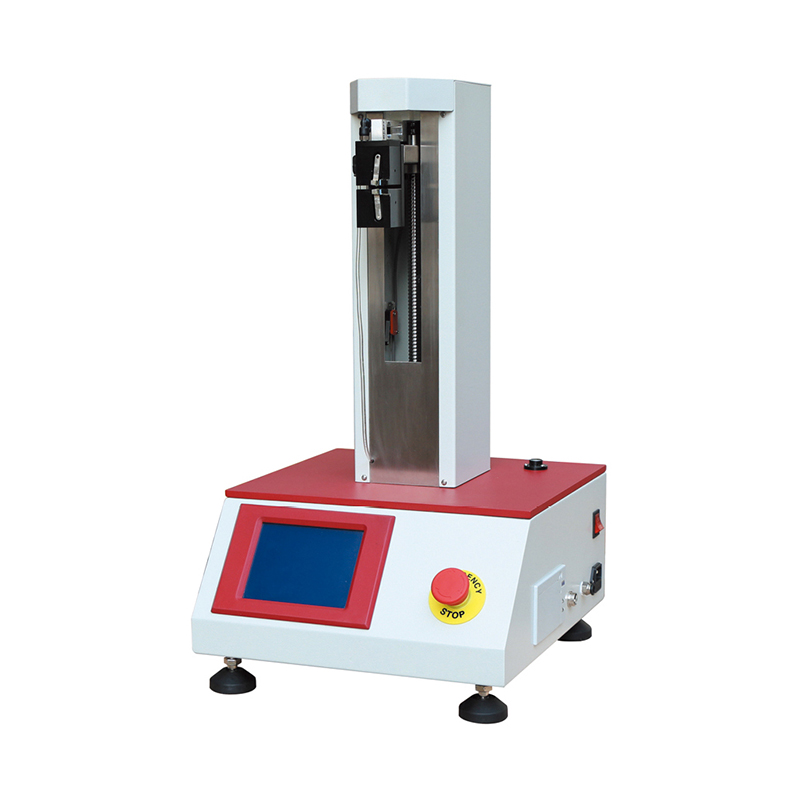

Fibre Tensile Tester
Determine the breaking force and elongation at break of individual fibers in the conditioned or wet state. It is applicable to all fibres, including crimped fibres.
| Product Model: | YG005E | Design Standard: | ISO 5079, ISO 11566, ASTM D3822, BS 4029 |
|---|
Application:
Fibre Tensile Tester determines the breaking force and elongation at break of individual fibers in the conditioned or wet state.
It is applicable to all fibres, including crimped fibres.
Principle:
An individual fibre is extended at a constant rate until rupture occurs. The elongation od the fibre and the force required are measured.
To calculate the breaking tenacity, the linear density of the individual fibres or the mean linear density of the laboratory sample is also required.
Test Criteria:
ISO 5079, ISO 11566, ASTM D3822, BS 4029
Specification:
|
Force range |
1,000cN, division value 0.01cN |
|
Test accuracy |
≤±0.2%F.S |
|
Stroke |
≤200mm |
|
Test speed |
2~200mm/min, adjustable |
|
Force unit |
N, Cn, Kgf, mm, lb, in |
|
Clamp distance |
0.1mm, digital setting |
|
Data output |
LCD display + PC |
|
Power source |
1-phase, AC220V, 50Hz |
|
Machine size |
500*400*600mm |
|
Weight |
25kg |
