YG815D-I

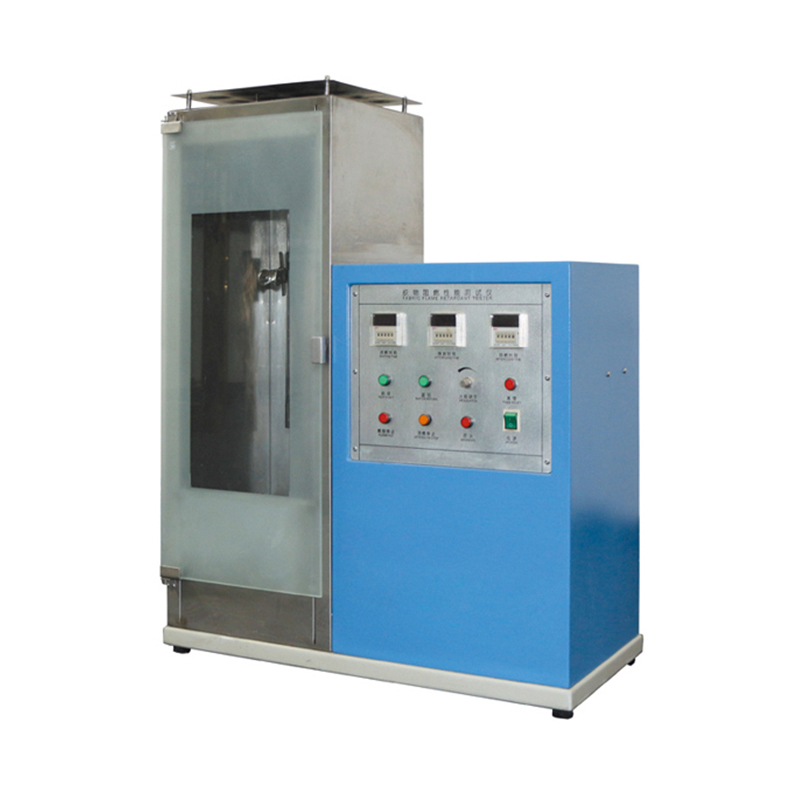

Flammability Tester (Vertical Method)
Measure the flammability of textiles.
- Product Model
- YG815D-I
- Design Standard
- JIS L1091
Description
Application:
Flammability Tester measures the flammability of textiles.
Test Method:
Measure the spread of burning (the carbonized area and carbonized distance), the after flame time, the after glow time and the smoldering time.
Test Criteria:
JIS L1091
Technical Parameter:
|
Ignition method |
Automatic |
|
Timer range |
0.1~999.9s |
|
Ignition time |
12s |
|
Inner diameter of igniter tube |
Ø11mm |
|
Power source |
1 Phase, AC220V, 50Hz |
|
Machine size |
750W*360D*940Hmm |
|
Weight |
60kg |
