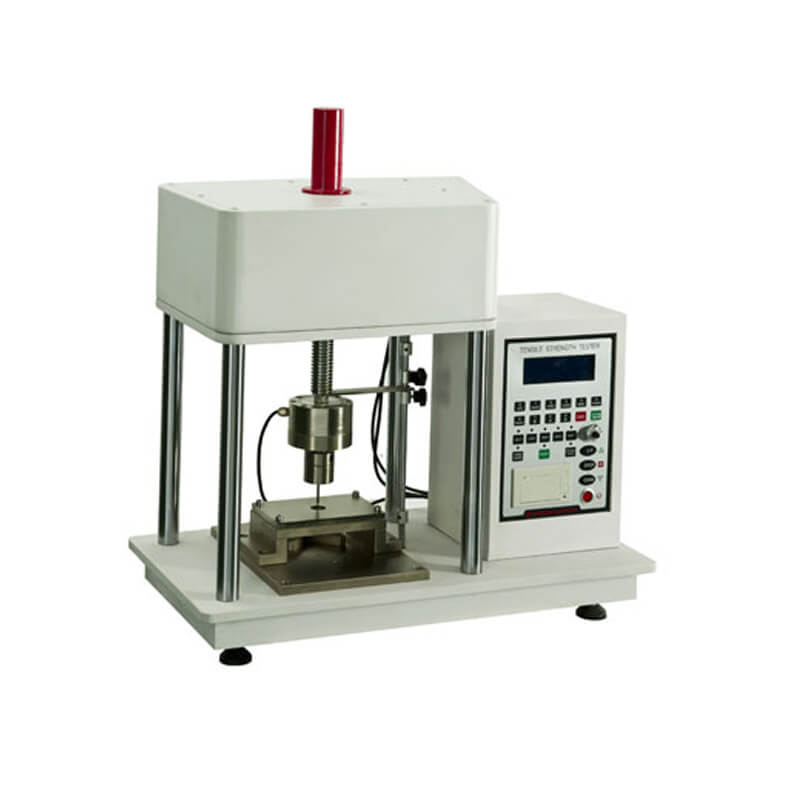

Footwear Compression Puncture Tester

LABTECH is a high-tech enterprise in China recognized by the Ministry of Science and Technology, focusing on the research and development of simulation environmental test chamber and lab instruments for more than 20 years.

Footwear Compression Puncture Tester

Determine the compression resistance for the forepart of footwear.

Product Model: R-F628
Design Standard: EN ISO 20344
GET A QUOTE

Application:

Footwear Compression & Puncture Tester determines the compression resistance for the forepart of footwear.



Test Method:

Put the steel forepart of footwear between the upper and lower pressure plates, then apply the required pressure. Check the sinking degree of steel head to evaluate the footwear can ensure the toes safety or not.



Test Criteria:

EN ISO 20344



Technical Parameter:

Sensor capacity

20KN

Compression force

15±0.1KN

Compression speed

5±2mm/min

(0~200mm/min, stepless speed regulator)

Fixture

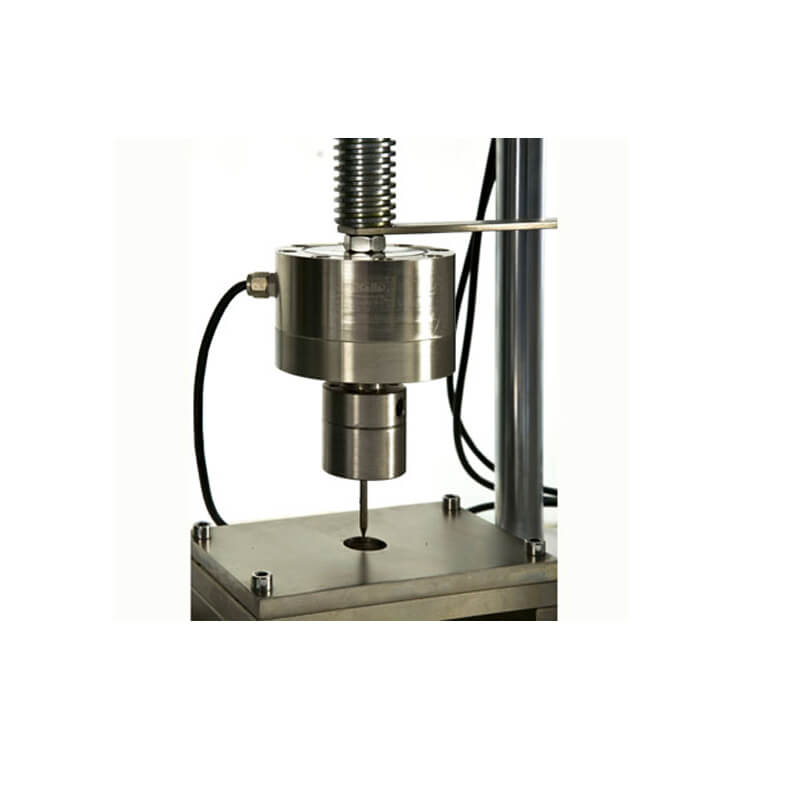

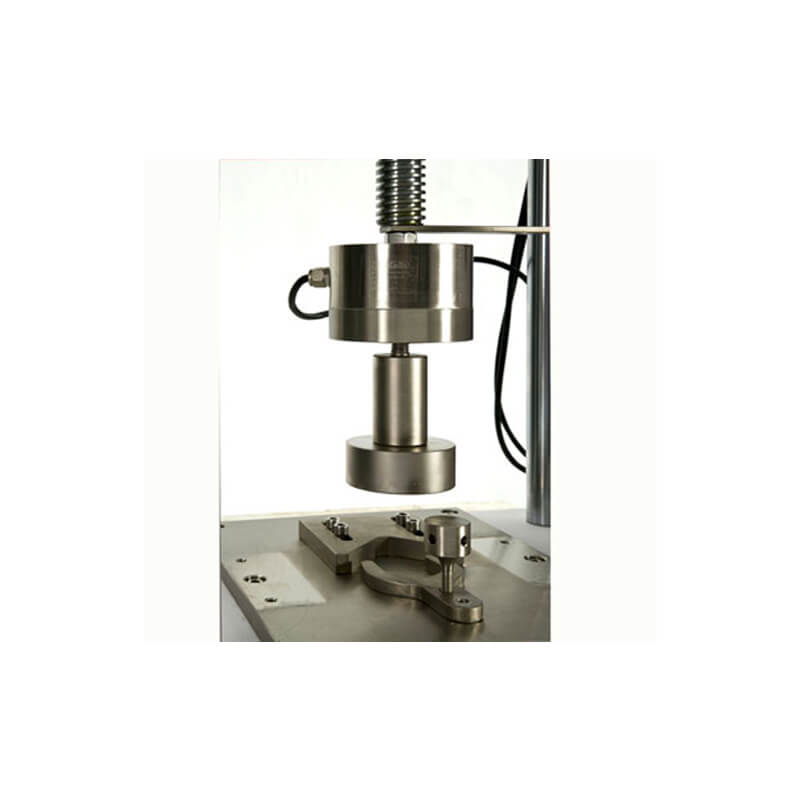

Compression & puncture fixture

Power source

1-phase, AC220V, 50Hz

Machine size

820*580*71mm

Weight

148kg
