R-F630

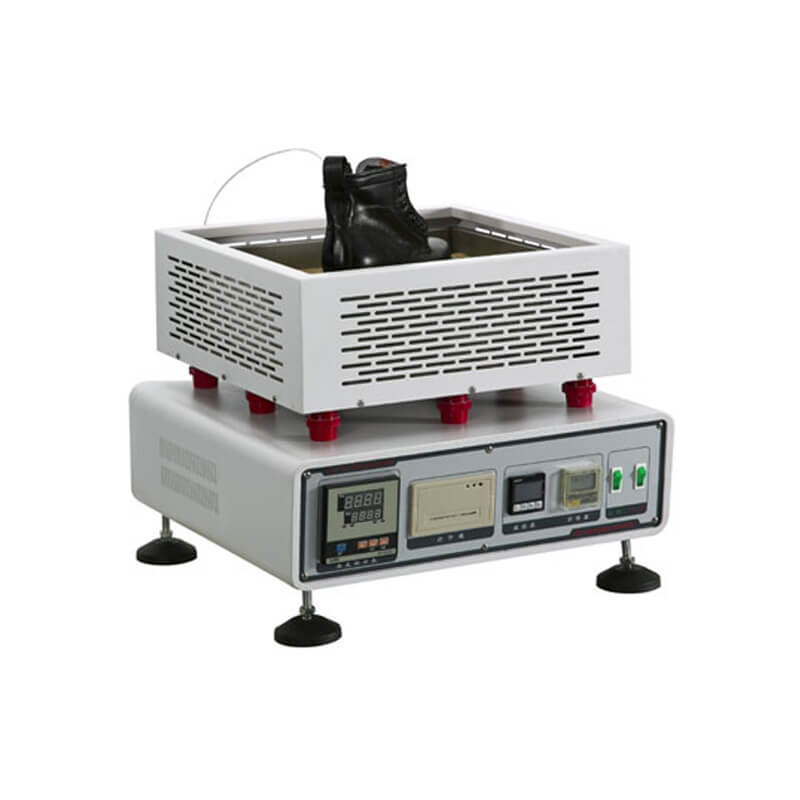

Footwear Heat Insulation Tester
Determine the thermal insulation of footwear sole.
- Product Model
- R-F630
- Design Standard
- ISO 20344
Description
Application:
Determine the thermal insulation of footwear sole.
Test Standard:
ISO 20344
Specification:
|
Sand bath dimension |
40x40cm,±2cm; depth >5cm |
|
Sand volume |
5000±250cm2 |
|
Sand size |
0.3~1.0mm |
|
Hotplate temperature |
Ambient~150±5℃; 250±5℃ |
|
Temperature recorder |
Auto record temperature and print report |
|
Power source |
1-phase, AC220V, 50Hz, 1.5KW |
|
Machine size |
500*500*350mm |
|
Weight |
36kg |
