R-F627

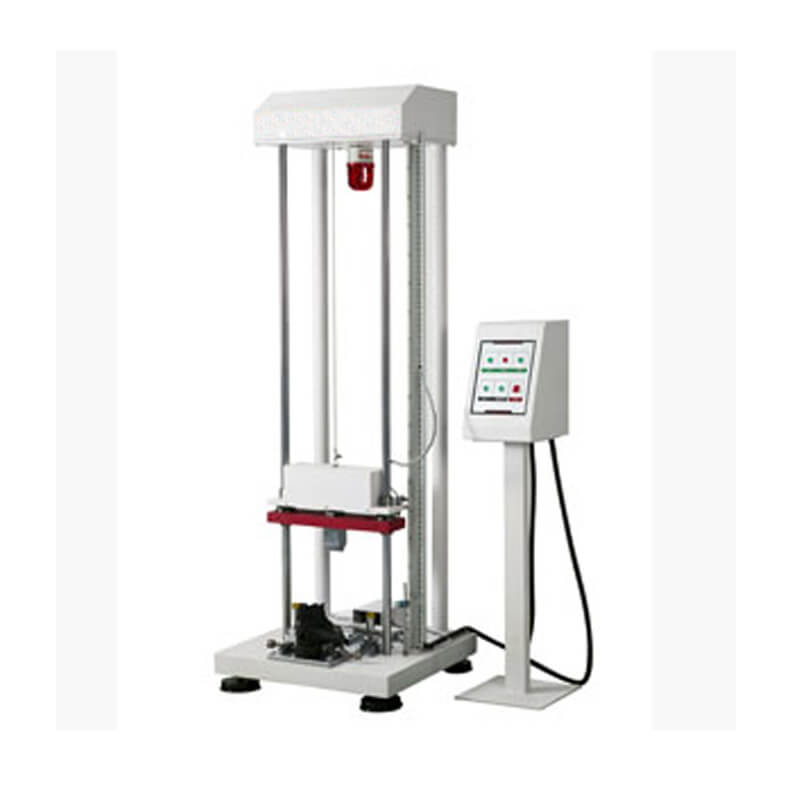

Footwear Impact Tester
Determine the impact resistance for the toe area of footwear.
- Product Model
- R-F627
- Design Standard
- ASTM F2412, ASTM F2413, ISO EN 20344, EN-344, ISO 8782
Description
Application:
Footwear Impact Tester determines the impact resistance for the toe area of footwear.
Test Method:

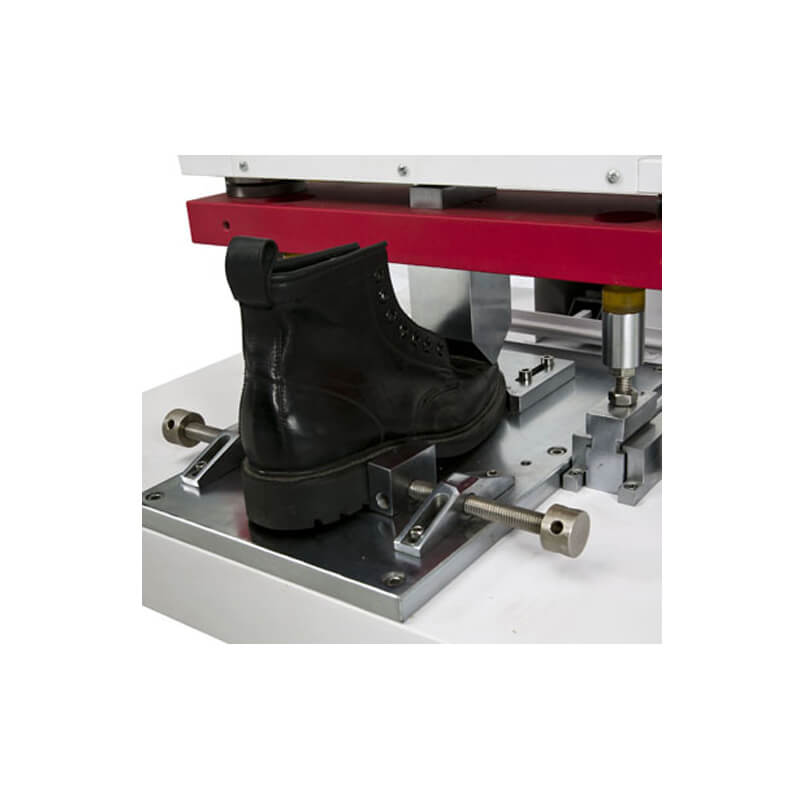

Footwear shall be constructed and manufactured so that a protective toe cap is an integral and permanent part of the footwear. The protective toe cap is impacted with a specified force. After impact, the height of the modeling clay cylinder is measured.
Test Standard:
ASTM F2412, ASTM F2413, ISO EN 20344, EN-344, ISO 8782
Specification:
|
Impact hammer weight |
20±0.2kg; 22.7±0.23kg |
|
Impact blade |
R3±0.1mm, 90±1° |
|
Impact height |
0~1300mm |
|
Release method |
Electromagnet |
|
Power supply |
1-phase, AC220V, 50Hz |
|
Machine size |
700*60*185mm |
|
Weight |
300kg |
