R-SY-8019B

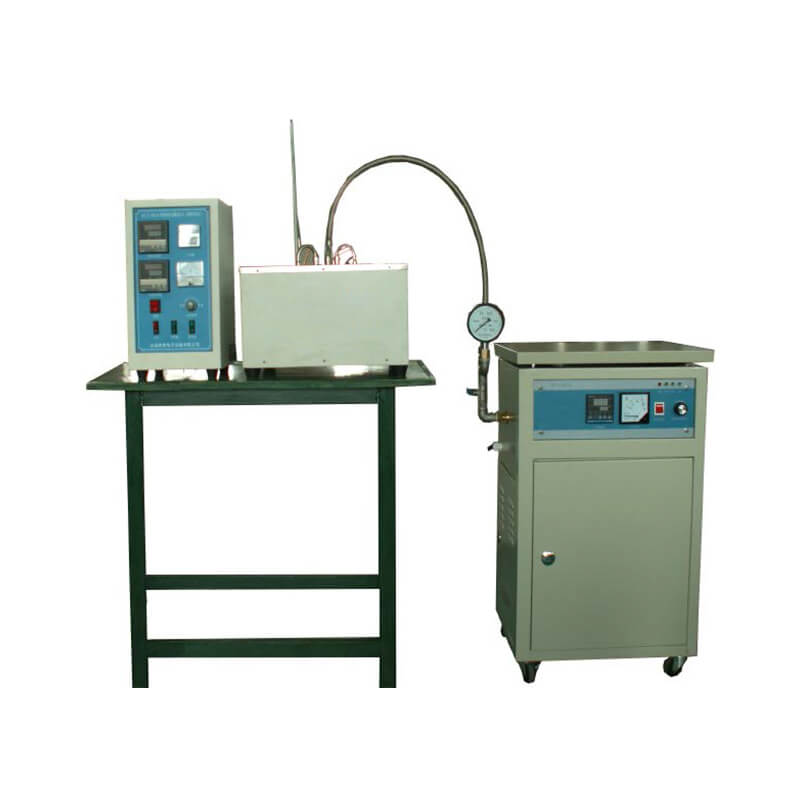

Existent Gum Tester - Vapor Generator
Determination of the existent gum content of aviation fuels, and the gum content of motor gasolines or other volatile distillates in their finished form, (including those containing alcohol and ether type oxygenates and deposit control additives.
- Product Model
- R-SY-8019B
- Design Standard
- ASTM D381
Description
Application:
Existent Gum Tester – Vapor Generator is applicable for the determination of the existent gum content of aviation fuels, and the gum content of motor gasolines or other volatile distillates in their finished form, (including those containing alcohol and ether type oxygenates and deposit control additives.
Test Standard:
ASTM D381
Specification:
|
Test positions |
3 |
|
Evaporation bath |
Aluminium metallicum bath |
|
Steam flow rate |
1000ml/s±150ml/s for each outlet |
|
Test hole temperature control point and accuracy |
232℃±3℃ |
|
Evaporation bath temperature control point and accuracy |
239℃±7℃ |
|
Temperature control |
PID control |
|
Dimension |
610 x 520 x 980mm |
|
Weight |
Approx. 65kg |
|
Power |
1-ph, 220V±10%, 50 Hz |
