RK-PCK Series

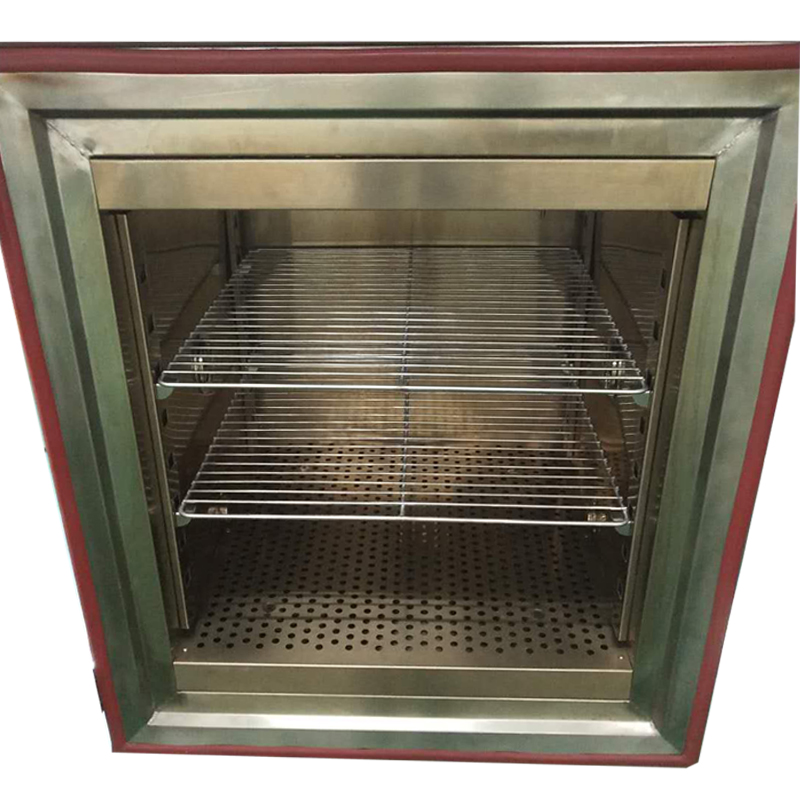

Heat Aging Oven
Heat Aging Oven uses new incoming air to oxidize products to evaluate products aging performance in the high temperature environment , which is widely applicable for electrical insulation heat resistance test and electronic parts, plastic products air aging test.
- Product Model
- RK-PCK Series
Description
Application:
Heat Aging Oven uses new incoming air to oxidize products to evaluate products aging performance in the high temperature environment, which is widely applicable for electrical insulation heat resistance test and electronic parts, plastic products air aging test.
Specification:
|
Inner Volume |
100L |
150L |
|
Internal size |
W50*D40*H50cm |
W50*D50*H60cm |
|
Temperature range |
RT+20℃～300℃ |
|
|
Temperature fluctuation |
±0.5℃ |
|
|
Temperature uniformity |
±2.0℃ |
|
|
Timing range |
1~9999 (s、m、h) adjustable |
|
|
Ventilation time |
1~99 (s、m、h) adjustable |
|
|
Ventilation way |
Automatic by timer, adjustable |
|
|
Ventilation times |
8~30times/h, adjustable |
|
|
Circulation way |
Fan forced circulation mode |
|
|
Ventilation pump |
Oil-free booster pump |
|
|
Heat up rate |
RT℃~300℃ ≤40min (under rated load) |
|
|
Internal material |
SUS3042B |
|
|
External material |
stainless steel |
|
|
Thermal insulation material |
Glass Cotton |
|
|
Heater |
Nero fin type heater |
|
|
Sample holder |
Two layer stainless steel holder or turntable |
|
|
Door |
Single door with stainless steel handle |
|
|
Controller |
PID Digital controller |
|
|
Sensor |
PT100 |
|
|
Power |
1-ph, 220±10%, 50Hz |
|
