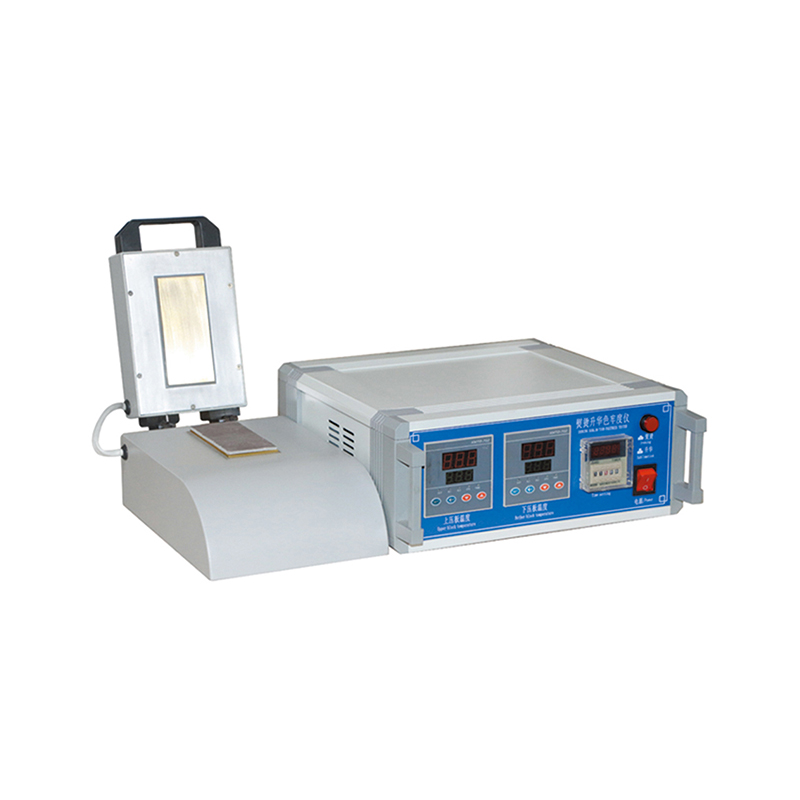

YG605
Hot Pressing Colorfastness Tester
Determine the colorfastness of dyed textiles under hot pressing, dry pressing and damp pressing.
- Product Model
- YG605
- Design Standard
- JIS L0850, JIS L0879, ISO 105-X11, ISO 105-P01
Description
Application:
Hot Pressing Colorfastness Tester determines the resistance of the color of textiles of all kinds and in all forms to ironing and to processing on hot cylinders.
Principle:
Dry Pressing: A dry specimen is pressed with a heating device at a specified temperature and pressure for a specified time.
Damp Pressing: A dry specimen is covered with a wet cotton adjacent fabric and pressed with a heating device at a specified temperature and pressure for a specified time.
Wet Pressing: The upper surface of a wet specimen is covered with wet cotton adjacent fabric and pressed with a heating device at a specified temperature and pressure for a specified time.
Test Standard:
JIS L0850, JIS L0879, ISO 105-X11, ISO 105-P01
Specification:
|
Specimen heating area |
50x110mm |
|
Pressure |
4Kpa±1Kpa |
|
Temperature |
Ambient ~ 220℃, control error ±1℃ |
|
Heating time |
Ambient to 110℃ < 30min |
|
Testing method |
Sublimation (Double side heating), pressing (single side heating) |
|
Power source |
1 Phase, AC220V, 50Hz, 300W |
|
Machine size |
305W*280D*170Hmm |
|
Weight |
13kg |
