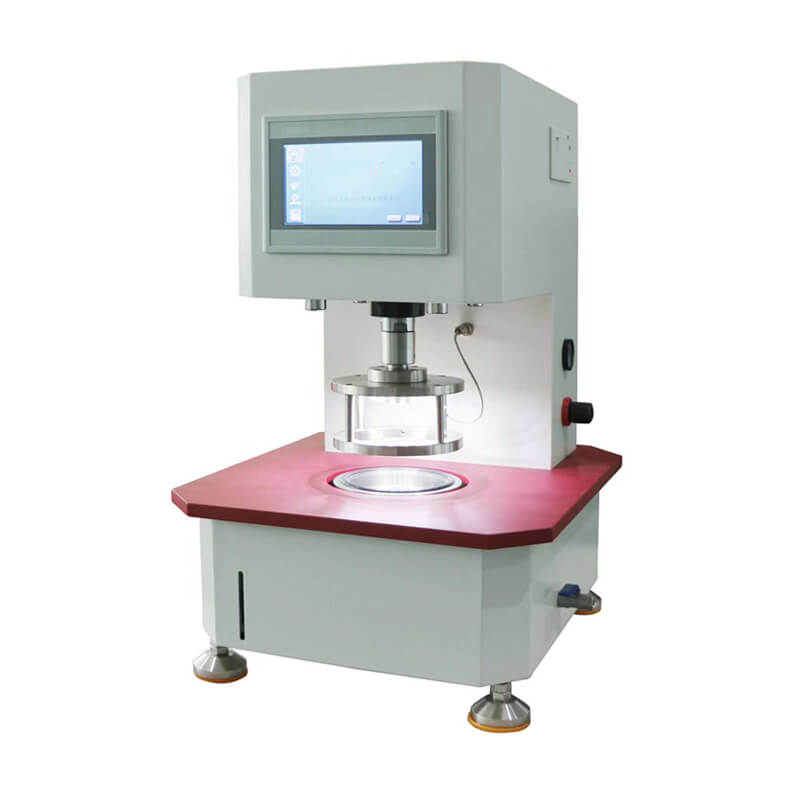

Hydrostatic Head Tester

Evaluate the resistance to water penetration of fabric with waterproof treatment, such as coating fabrics, tent, canvas and rain-proof clothing. The test area is 100cm2, and rate of increase of eater pressure is 10±0.5cm/min.

Product Model: YG812E-20
Design Standard: EN 13795, EN20811

Application:

Hydrostatic Head Tester evaluates the resistance to water penetration of fabric with waterproof treatment, such as coating fabrics, tent, canvas and rain-proof clothing. The test area is 100cm2, and rate of increase of eater pressure is 10±0.5cm/min.



Design standard:

EN 13795, EN20811



Specification:



Control mode

PLC touch screen or PC (computer provided by user)

Measuring range

500Pa~200kPa

Water pressure rising rate

1Kpa~100Kpa/min (adjustable)

Standard test head

100cm2

Testing mode

Pressurization method/ constant pressure and time/constant pressure timing/ water seepage and leakage/ deflection test

Testing unit

Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar

Print

Built-in printer

Sample clamp

Pneumatic

Power

1-ph, 220V±10%, 50Hz
