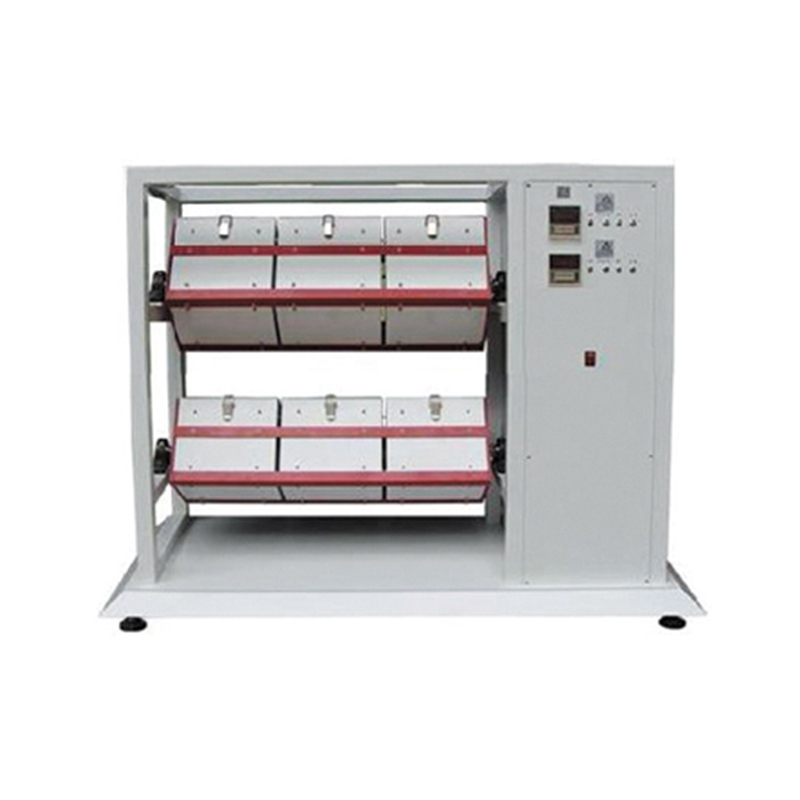

ICI Pilling & Snagging Tester - 6 Station

Application:

ICI Pilling & Snagging Tester determines the pilling resistance and change of appearance of textile fabrics. The internal surfaces of the pilling box should be lined with cork jointing material with thickness 3.2mm, and the box rotates at 60±2r/min in horizontal axis.



Principle:

Mount the test specimens on the polyurethane tubes of Pilling & Snagging Tester and tumbled ramdomly in a cork-lined box under specific conditions. After a certain period of tumbling, the specimens will have changes in appearance, then assess against a standard rating scale.



Test Standard:

ISO 12945-1, BS 5811, JIS L1076, IWS TM152



Specification:

Test stations	6 boxes
Inner size	235 x 235 x 235mm (include cork liner)
Rotating speed of box	40~80r/min, adjustable
Counter	2~99,999 times
Sample holder tube	D31.5 x 140mm, weight 52.25g
Sample size	125*125mm
Power	AC 220V, 50HZ, 120W (can be appointed)
Machine size	980W*510D*1200Hmm

Sample maker is optional.
