IPX1~6 Waterproof Test Chamber

IPX1~6 Water Test Chamber is applicable for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles & motorcycles parts and other products in the simulation of rain, splashing water, and spraying water conditions for testing the physical and other related performance, so as to facilitate the design, improvement, verification and factory inspection of the product.

Description

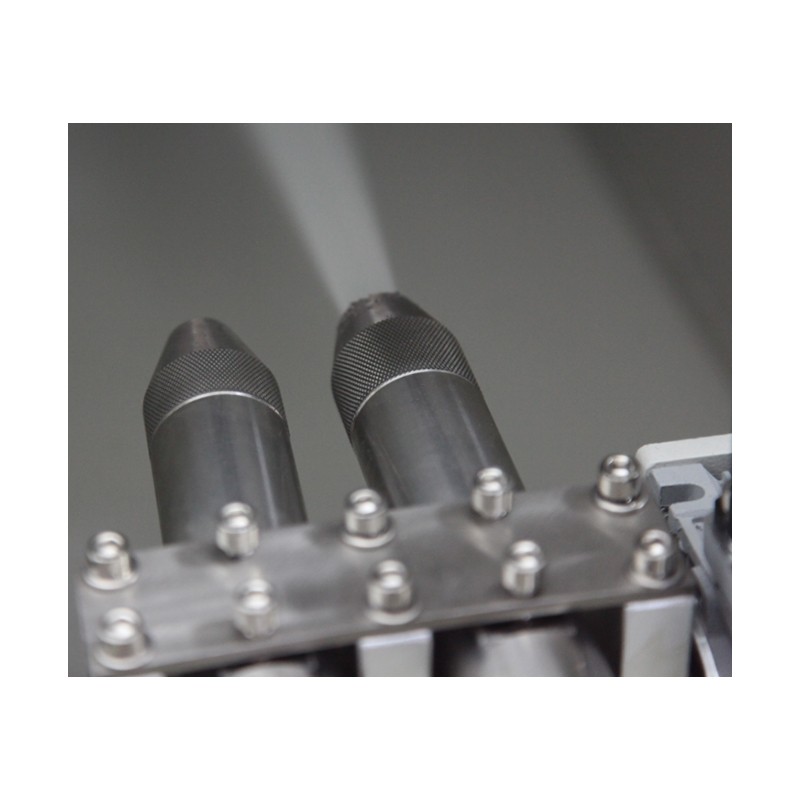

IPX1~6 Water Test Chamber integrates IPX1, IPX2, IPX3, IPX4, IPX5 & IPX6 waterproof test in one chamber, test program and cycles are controlled by PLC controller. Water flows into the reservoir at chamber bottom for cyclic use.

Specifications
Model	R-FS-850
Internal volume	850L
Internal dimensions	W900 * D900 * H1050mm
External dimensions	W1350 * D3700 * H1920mm
Weight	300kg (Approx.)
Performance & Structure
Chamber material	External: steel plate with baking finished Internal: stainless steel #304
Turntable size	Diameter 400mm
Turntable load capacity	Maximum 50kg
Turntable inclinable Angle	0°/ 15°(horizontally)
Turntable lift height	460~740mm
Turntable speed	1~5r/min, adjustable
Turntable rotation	Forward and reverse rotation, suitable for sample powered on during operation to prevent wires winding
Waterproof power socket	AC220V, 10A Power on and off controlled by PLC controller, duration: 0~999min
Test duration	0~999min, adjustable, set on PLC controller
Protection device	IPX1&2 water drip assembly with stainless steel mesh shield to prevent operator from touching the drips nozzles; Leakage protection, water shortage protection, short circuit protection.
Accessory list	Water filter element x 1pc Nozzle needle x 200pcs Water pipe x 6m Packing list x 1pc User manual x 1pc
Water source	Pressure ≥ 0.2Mpa
Air source	Pressure ≥ 0.5mPa Compressed air is used to dry IPX1&2 water drip tank to avoid water rust blocking the nozzles.
Power source	3-phase, AC380V, 50Hz, 3.0kW; With separate leakage protection air switch for the chamber use only; The grounding resistance of PGND cable is less than 4 ohms.
Working environment	Temperature: 5℃~35℃; Relative humidity: ≤85%; Atmosphere pressure: 86kPa~106kPa; Distance from water / air / power source to chamber is less than 2m; Space from rear, left, right & top of the chamber 800mm, front 1,400mm.

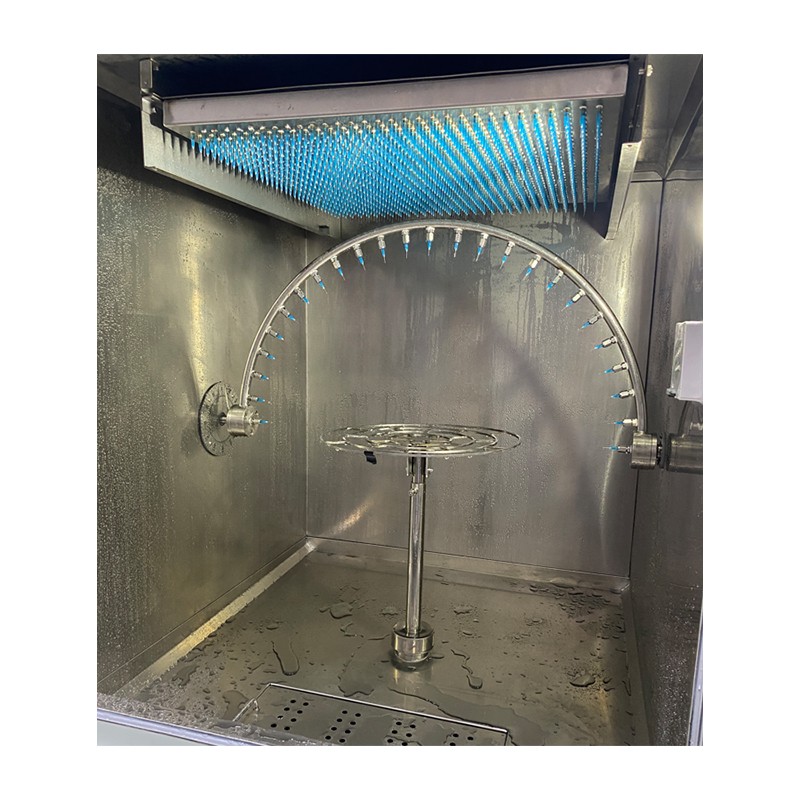

Inner Chamber:
Including IPX1,2,3 & 4 test rigs, turntable & water reservoir;
Material: stainless steel #304 to ensure no rust for long time operation;
Built-in water reservoir for cyclic use;
Equipped with water-proof power socket inside chamber for powered test of samples;
With observation window on the door and LED lamp inside chamber for viewing sample status.

Water Supply & Control System
Control panel includes PLC controller, pressure gauge, flowmeters & E-stop button;
Panasonic PLC control module and touch screen display;
Electrical components adopt imported brands, such as LS, Omran…
Turntable and IPX3&4 oscillating tube are driven by stepper motor, speed and angle are precisely adjusted;
Language: English & Chinese;
Flow adjustment mode: manual adjust with flowmeters;
Water reservoir has level sensor for automatically controlling water inlet;
With low water level alarm detection and protection system to prevent water pump damage;
With high precision water filter, can effectively filter the impurities in tap water, filter element can be replaced regularly.
