R-FC-3
IP3X Test Probe
Verify the protection of persons against access to hazardous parts, and verify the protection against access with a tool.
- Product Model
- R-FC-3
- Design Standard
- IEC 60529, IEC 61032, UL
Description
Application:
Verify the protection of persons against access to hazardous parts, and verify the protection against access with a tool.
Test Standard:
IEC 60529, IEC 61032, UL
Specification:
|
Test rod diameter |
2.5mm |
|
Test rod length |
100mm |
|
Stop sphere diameter |
35mm |
|
Handle diameter |
10mm |
|
Handle length |
100mm |

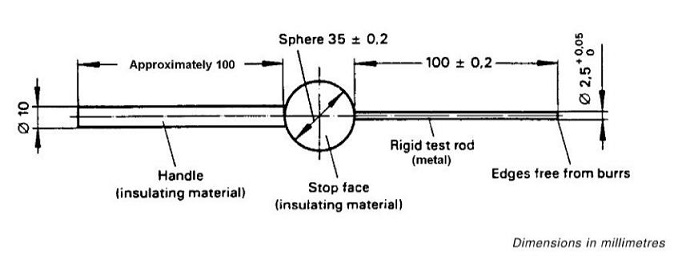

Figure:
