IPX3~6 Water Test Chamber

IPX3~6 Water Test Chamber is applicable for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles & motorcycles parts and other products in the simulation of rain, splashing water, and spraying water conditions for testing the physical and other related performance, so as to facilitate the design, improvement, verification and factory inspection of the product.

Description

IPX3~6 Water Test Chamber integrates IPX3, IPX4, IPX5 & IPX6 waterproof test in one chamber, test program and cycles are controlled by PLC controller. Water flows into the reservoir at chamber bottom for cyclic use.

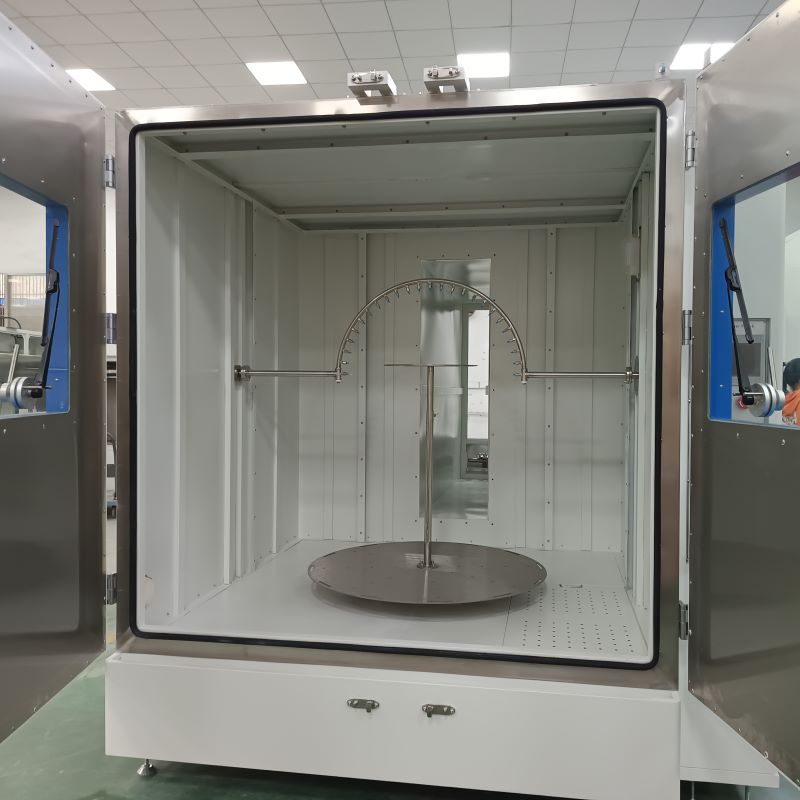

Inner Chamber:
– Including IPX3 & 4 test rigs, turntable & water reservoir;
– Material: stainless steel #304 to ensure no rust for long time operation;
– Turntable: set rotation rate on PLC, the upper for IPX3&4 test, and lower for IPX5&6 test;
– Have cable access port (diameter 100mm) with silicone plug for sample powered test (external power source is provided by user);
– Built-in water reservoir for cyclic use;
– With observation window on the door and LED lamp inside chamber for viewing sample status.

IPX3&4 Water Spray Rig:

– Oscillating tube radius R400mm & R800mm;

– Oscillating angle: 120°(IPX3), 350°(IPX4);

– Oscillating speed: 4S for 2*120° (IPX3), 12s for 2*360° (IPX4);

– ID of oscillating tube: 15mm;

– With angle adjusting devices on the wall;

– Water flow rate: 1.1L/min±5% (IPX3), 1.8L/min±5% (IPX4);

IPX5&6 Water Ingress Rig:

– Fixed at the rear of the chamber with channel and support frame;

– Nozzles swing drive: stepper motor;

– Swing height and speed controlled by PLC controller;

– Nozzle diameter: 6.3mm (IPX5), 12.5mm (IPX6);

– Water flow rate: IPX5=12.5±0.625(L/min) ; IPX6=100±5(L/min);

– Water pressure: regulate as per water flow;

– Distance from nozzle to the center of turntable: 2.5~3m;

Specifications
Model	R-FS-800
Internal dimensions	W1700 * D1700 * 1700mm
External dimensions	W2090 * D4215 * H2340mm
Weight	600kg (Approx.)
Max. sample size for IPX3&4 (WDH)	500500500mm
Performance & Structure
Chamber material	External: steel plate with baking finished Internal: stainless steel #304
Oscillating tube	R800mm & R400mm
Turntable size	Upper φ800mm &φ400mm, lowerφ1000mm,
Turntable lift height	1,000~1,400mm
Turntable load capacity	Maximum 50kg
Turntable speed	1~5r/min, adjustable
Turntable rotation	Forward and reverse rotation, suitable for sample powered on during operation to prevent wires winding
Cable access port	Diameter 100mm, with soft cover (external power source is provided by user)
Test duration	0~999min, adjustable, set on PLC controller
Protection device	Leakage protection, water shortage protection, short circuit protection. Filter removes impurities from water to prevent nozzle clogging.
Accessory list	Water filter element x 5pcs Nozzle needle x 200pcs IPX34 oscillating tube seal ring x 4pcs Water pipe x 6m Packing list x 1pc User manual x 1pc
Water source	Pressure ≥ 0.2Mpa
Power source	3-phase, AC380V, 50Hz, 3.0kW (can be customized); With separate leakage protection air switch for the chamber use only; The grounding resistance of PGND cable is less than 4 ohms.
Working environment	Temperature: 5℃~35℃; Relative humidity: ≤85%; Atmosphere pressure: 86kPa~106kPa; Distance from water / power source to chamber is less than 2m; Space from rear, left, right & top of the chamber 600mm, front 1,400mm for usage and maintenance.
