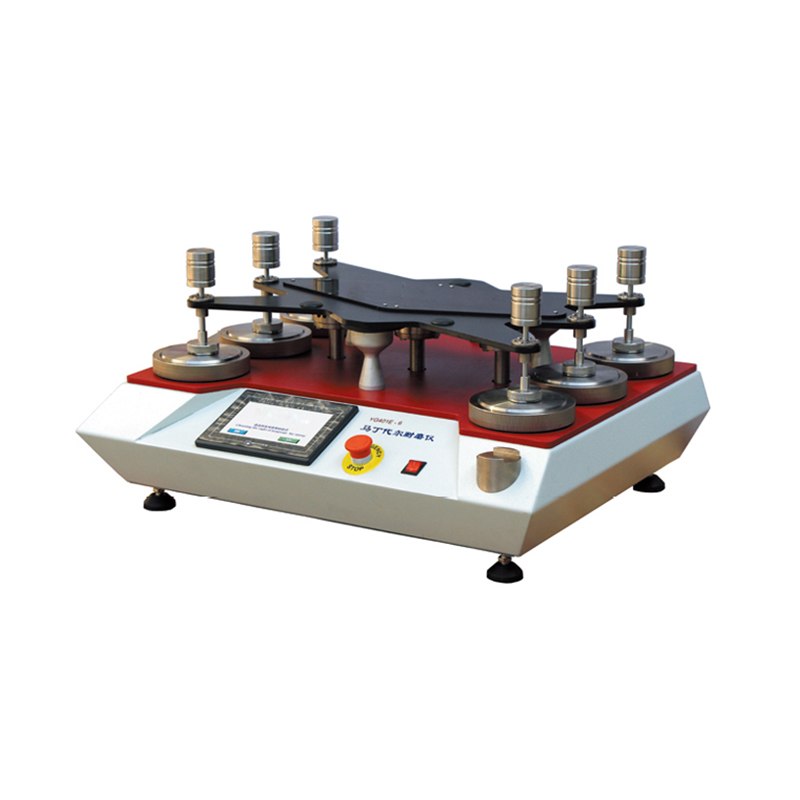

Martindale Abrasion Tester - 6 Station

Application:

Martindale Abrasion Tester determines the resistance to abrasion of materials by the Martindale method, it's applicable for textile fabrics including coated fabrics, woven fabrics, knitted fabrics, fleece and nonwovens.



Principle:

Mount a circular specimen on the specimen holder of Martindale Abrasion Tester with certain load, and the surface of test specimen rubs against an abrasive medium (the same mounted standard fabric) in geometric movement figure, ie Lissajous figure.

The specimen holder rotates freely around its own axis which is perpendicular to the sueface of the specimen. Evaluate the abrasion resistance of textile fabrics by comparison the tested specimen visually with standard fabrics or photographs.





Test Standard:

ISO 12945-2, ISO 12947, ASTM D4966, ASTM D4970, JIS L1096, IWS TM 196 / TM 112



Technical Parameters:

Test station	6 stations
Counting range	0~999,999 times
Stroke	Longitudinal 24±0.5mm, transverse 60.5±0.5mm
Mass of pressurized matter	1. Gripper: 198±2g 2. Material hammer of clothing material: 395±2g 3. Hammer for furniture decoration sample:  594±2g 4. B type clamp holder: 155±1g 5. Stainless steel sphenoid: 260±1g
Effective friction diameter of grinding block	A Type: 198g (1.96N), Friction head D28.65±0.05mm B Type: 155g (1.52N), Friction head D90±0.1mm
Relative motion speed of gripper & grinding platform	50±2r/min (20-70r/min, adjustable)
Mass of sample pressure hammer	2385±10g
Power	AC 220V, 50HZ, 500W (can be appointed)
