YG812E

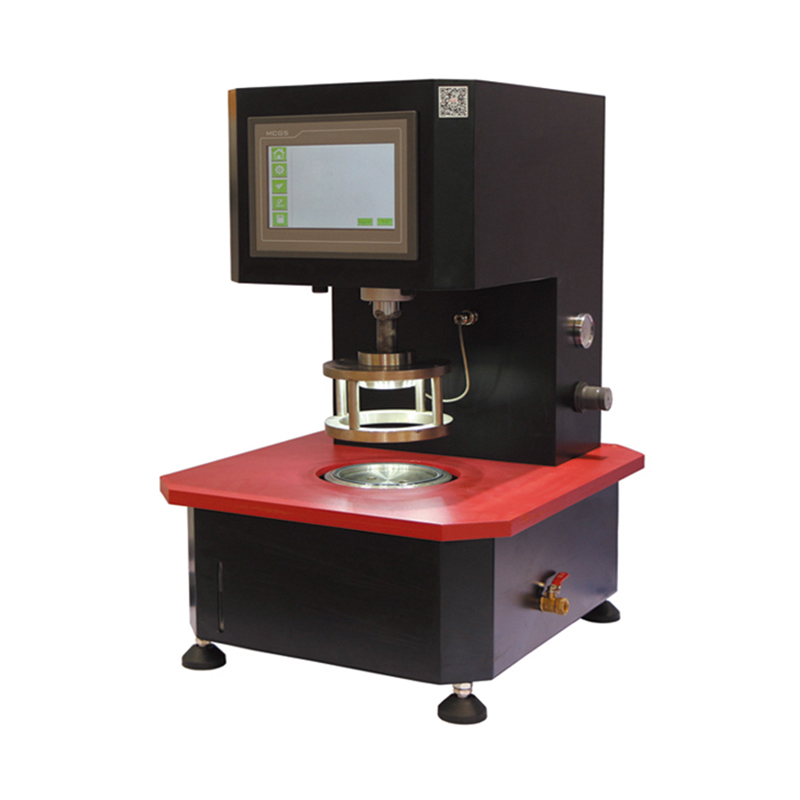

Pneumatic Water Permeability Tester
Measure the water permeability of fabric with waterproof treatment, such as coating fabrics, canvas, rain-proof clothing.
- Product Model
- YG812E
- Design Standard
- AATCC 127, DIN 53886, JIS L 1092
Description
Application:
Water Permeability Tester measures the resistance of fabric to the penetration of water under hydrostatic pressure. It’s applicable to all kinds of fabrics, including treated with waterproof ot water resistant finish.
Water resistance depends on the repellency of the fibers and yarns, as well as the fabric construction.
Principle:
One surface of test specimen of Water Permeability Tester is under a hydrostatic pressure, increasing the pressure at a constant rate until the other surface of test specimen appears three points of leakage. The water applied from above or below the test specimen.
Test Standard:
AATCC 127, DIN 53886, JIS L 1092
Specification:
|
Model No. |
YG812E-5 |
YG812E-20 |
YG812E-50 |
|
Measuring range |
100Pa~50kPa |
500Pa~200kPa |
1kPa~500kPa |
|
Sample area |
100cm2 |
100cm2 |
7.8cm2 |
|
Pressure display resolution |
1/10,000 |
||
|
Sample area |
100cm2 , 7.8cm2 |
||
|
Compression rate |
0.1~100kPa/min (adjustable) |
||
|
Testing mode |
Pressurization method; Constant pressure and time; Constant pressure timing; Water seepage and leakage; Deflection test |
||
|
Testing unit |
Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar |
||
|
Sample clamp |
Pneumatic |
||
|
Data output |
Thermal printer |
||
|
Power source |
1 Phase, AC220V, 50Hz, 500W |
||
|
Machine size |
550W*430D*630Hmm |
||
|
Weight |
60kg |
||
