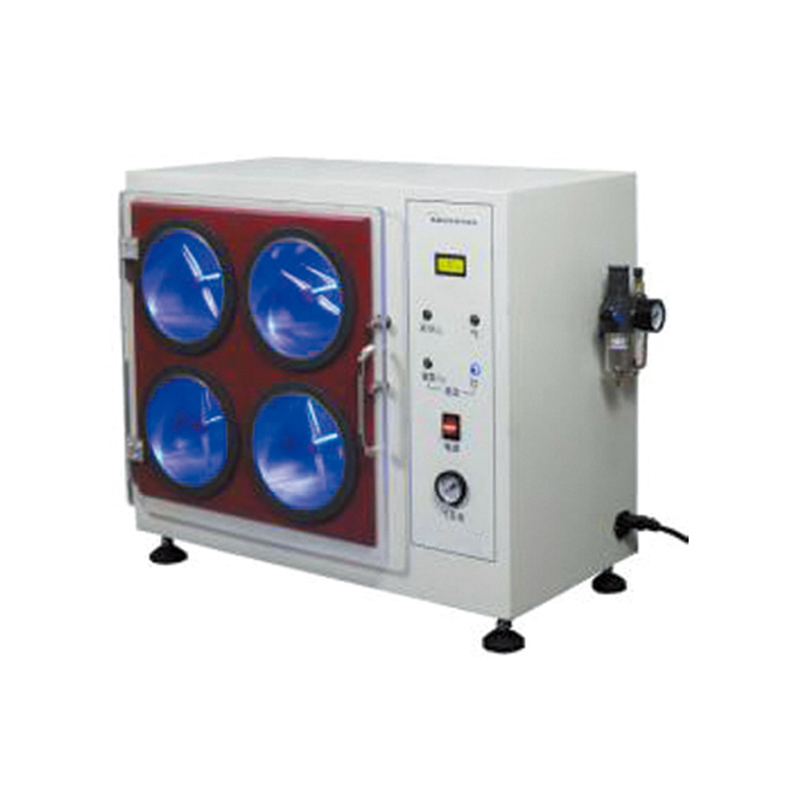

Random Tumble Pilling Tester - 4 Station

Application:

Random Tumble Pilling Tester determines the property of fabrics forming pilling, fuzzing and matting by using the random tumble method. It’s applicable to various woven and knitted fabrics, including napped fabrics such as fleeces and inlay fabrics.



Principle:

Tumble test specimens randomly under defined conditions in a lined cylindrical test cabinet of Rabdom Tumble Pilling Tester. After a specific period of tumbling, visul assesse the fuzzing, pilling and matting of test specimen.



Test Standard:

ISO 12945.3, ASTM D3512, ASTM D1375



Specification:

Test Station	4 stations
Timer	1~999min
Tumble size	146*152mm
Cork liner size	452*146*1.5mm
Stirring rod size	121mm
Rotating speed	1,200r/min
Tank pressure	14~21kPa (2~3psi)
Power source	1 Phase, AC220V, 50Hz, 90W
Machine size	480W*400D*680Hmm
Weight	80kg
