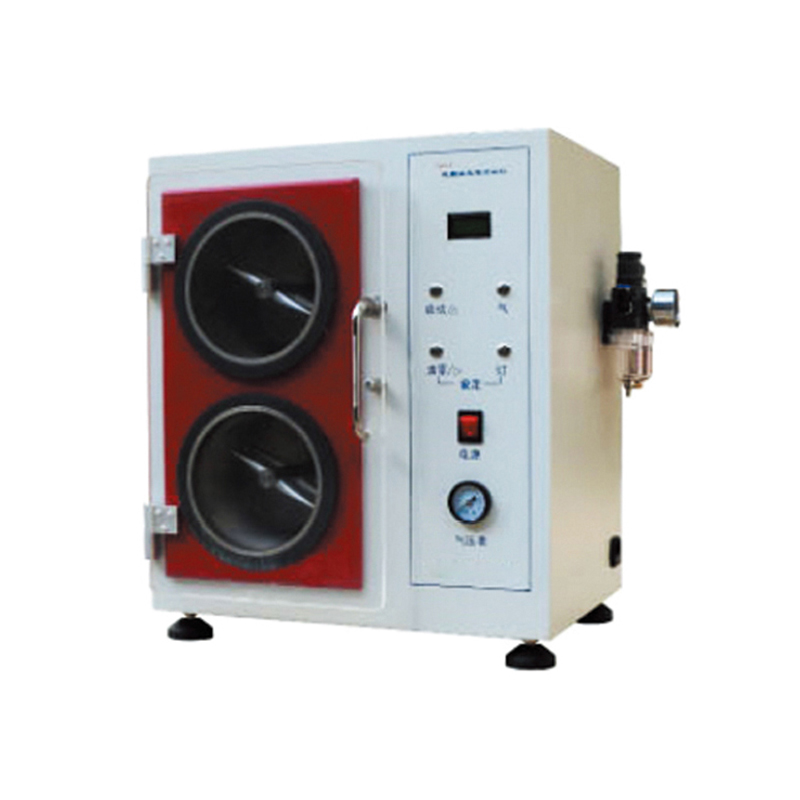

YG512-II
Random Tumble Pilling Tester
Determine the propensity of fabrics to form pills and other related surface changes on textiles using the random tumble pilling tester.
- Product Model
- YG512-II
- Design Standard
- ISO 12945.3, ASTM D3512, ASTM D1375
Description
Application:
Random Tumble Pilling Tester determine the resistance to pilling, fuzzing, and matting of textile fabrics. It’s applicable to woven and knitted fabrics, including napped fabrics (fleeces and inlay fabrics).
Principle:
Tumble randomly specimens under specific conditions in a lined cylindrical pilling test chamber. Visually assess the fuzzing, pilling and matting of specimens after a defined period of tumbling.
Test Standard:
ISO 12945.3, ASTM D3512, ASTM D1375
Specification:
|
Test Station |
2 stations |
|
Timer |
1~999min |
|
Tumble size |
146*152mm |
|
Cork liner size |
452*146*1.5mm |
|
Stirring rod size |
121mm |
|
Rotating speed |
1,200r/min |
|
Tank pressure |
14~21kPa (2~3psi) |
|
Power source |
1 Phase, AC220V, 50Hz, 90W |
|
Machine size |
400W*400D*680Hmm |
|
Weight |
70kg |
