R-F606

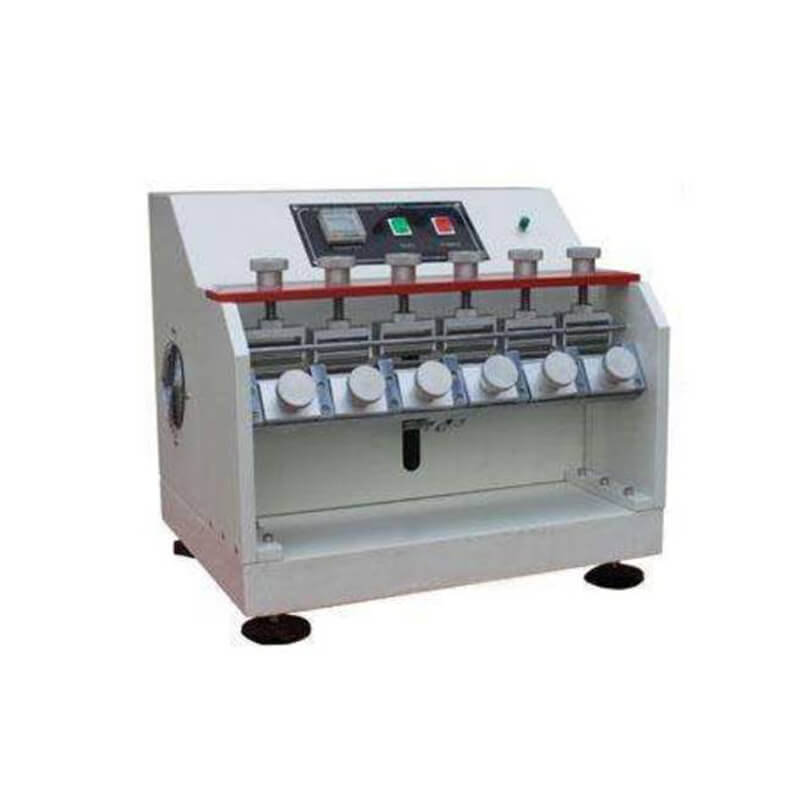

ROSS Flexing Tester
Determine the resistance of a polymeric material to cut growth during repeated flexing.
- Product Model
- R-F606
- Design Standard
- ASTM D1052, ISO 5423, 4643, SATRA TM60, BS 513
Description
Application:
ROSS Flexing Tester determines the resistance of a polymeric material to cut growth during repeated flexing.
Test Method:

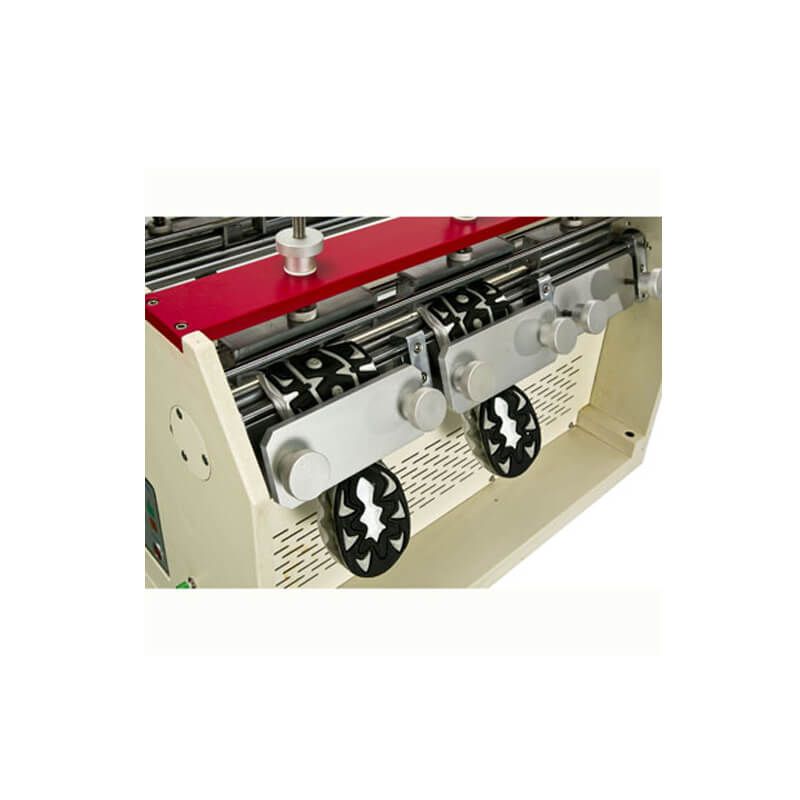

A pierced stripe test specimen is bent freely over a rod to a 90° angle and the cut length is measured at frequent intervals, to determine the cut growth rate. The cut is initiated by a special shaped piercing tool.
Test Standard:
ASTM D1052, ISO 5423, 4643, SATRA TM60, BS 513
Specification:
|
Model |
R-F606A |
R-F606B |
|
Test capacity |
12 sets |
6 sets |
|
Specimen size |
Sole: 6”Lx1”Wx0.25”D Rubber: 6”Lx1”Wx0.5”D |
Whole sole |
|
Flexing angle |
90±1° |
|
|
Speed |
ISO, SATRA 60±5cpm ASTM: 100±5cpm |
|
|
Counter |
LCD, 0~999,999 |
|
|
Machine size |
65*50*60cm |
|
|
Weight |
110kg |
|
|
Power source |
1-phase, AC220V, 50Hz |
|
