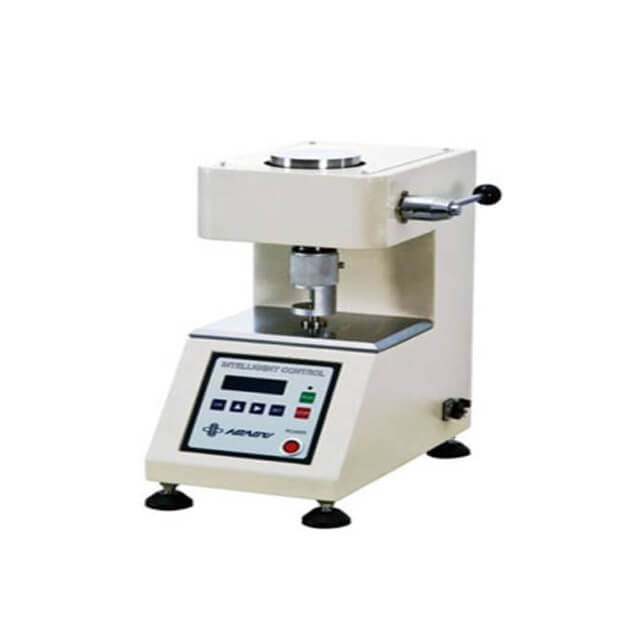

R-621
Rotate Abrasion Fastness Tester
Determine the resistance of a material to damage (marring) and transfer of the materials surface color during mild dry or wet abrasion.
- Product Model
- R-621
- Design Standard
- ISO 17700, SATRA TM8, SATRA TM14, BS 1006, BS 5131
Description
Application:
Rotate Abrasion Fastness Tester determines the resistance of a material to damage (marring) and transfer of the materials surface color during mild dry or wet abrasion. It’s applicable to all footwear uppers, linings and insocks irrespective of the material, in order to assess suitability for end use.
Test Standard:
ISO 17700, SATRA TM8, SATRA TM14, BS 1006, BS 5131
Specification:
|
Specimen size |
60x60mm / φ60mm |
|
Test speed |
149±4.8rpm |
|
Wool felt pad |
OD: 25±1mm ID: 3±0.5mm Density: <190±20kg/m3 |
|
Test load |
7.1±0.2N, 24.5±0.5N |
|
Power source |
1 Phase, AC220V, 50Hz, 60W |
|
Machine size |
300W*450D*500Hmm |
|
Weight |
35kg |
