R-SY-6602

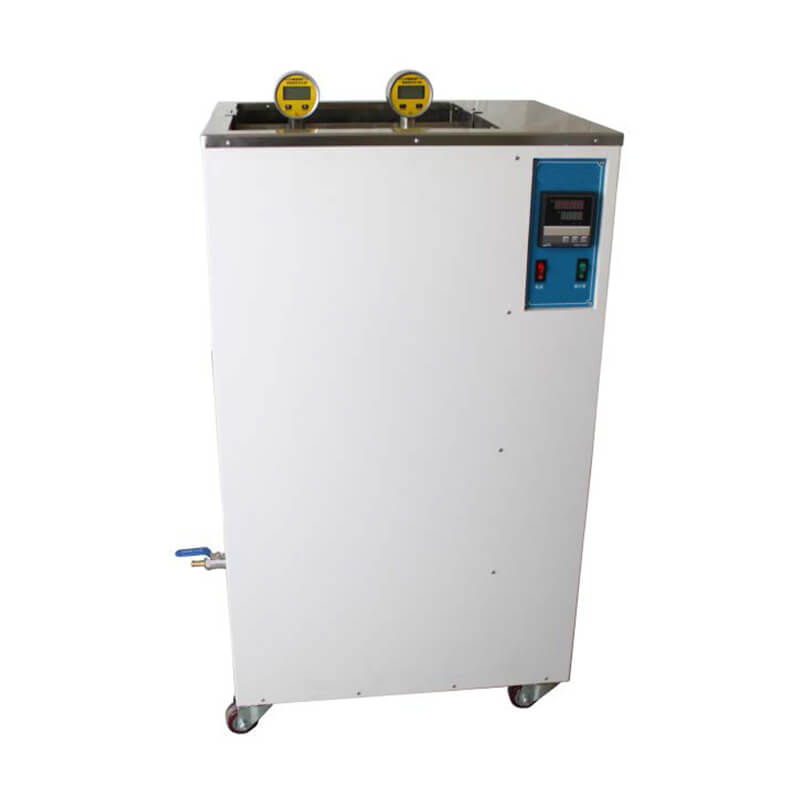

Liquefied Petroleum Gases Saturated Vapor Pressure Tester (LPG Method)
Determination of the gauge vapor pressures of liquefied petroleum gas products at temperatures of 37.8 °C (100 °F) up to and including a test temperature of 70 °C (158 °F). (Warning—Extremely flammable gas. May be harmful when inhaled.)
- Product Model
- R-SY-6602
- Design Standard
- ASTM D1267
Description
Application:
Saturated Vapor Pressure Tester (LPG Method) is applicable for the determination of the gauge vapor pressures of liquefied petroleum gas products at temperatures of 37.8 °C (100 °F) up to and including a test temperature of 70 °C (158 °F).
(Warning—Extremely flammable gas. May be harmful when inhaled.)
Test Standard:
ASTM D1267
Specification:
|
Valve material |
1Cr18Ni9Ti material which an bear 4Mpa pressure |
|
Constant temperature bath |
1Cr18Ni9Ti material and install electric heater and electric stir device inside |
|
Temperature range & accuracy |
≤50℃, ±0.1℃; >50℃, ±0.3℃ |
|
Temperature control |
Digital PID controller |
|
Stir system |
Consist of magnetic circulating pump, relative pipes and valves, 10W |
|
No-leakage pressure of vapor pressure tester |
>3.5 Mpa |
|
Pressure gauge |
0.4 level standard pressure gauge (ф150mm; 0-2.5MPa) |
|
Power |
1-PH, 220V, 50Hz |
