R-F616

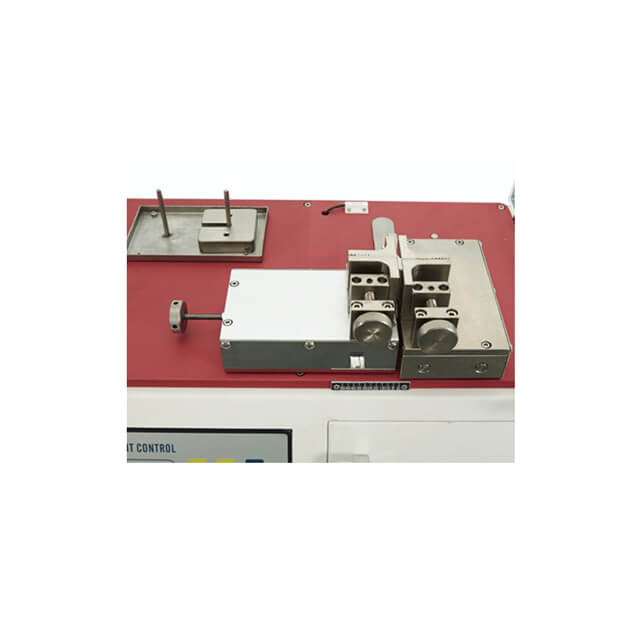

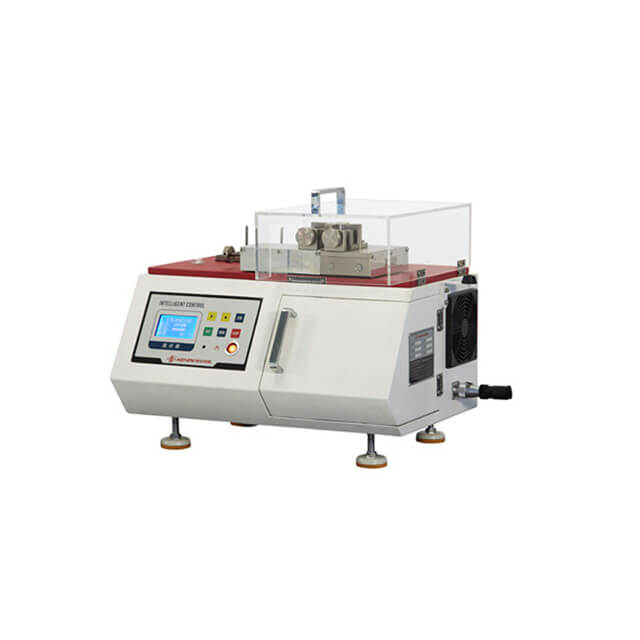

Scott Type Crease-Flex Abrasion Tester
Determine the "Fatigue strength by the fir" and "Crease wear-out strength" such as resin finishing cloth, leather crossing, and leather.
- Product Model
- R-F616
- Design Standard
- JIS L1096, JASO M403
Description
Application:
Scott Type Crease-Flex Abrasion Tester determines the "Fatigue strength by the fir" and "Crease wear-out strength" such as resin finishing cloth, leather crossing, and leather.
Test Standard:
JIS L1096, JASO M403
Specification:
|
Load |
200~2,000g |
|
Clamp width |
45mm |
|
Clamp distance |
Max. 40mm |
|
Sample load |
0.5~5kg, adjustable |
|
Test speed |
120cpm |
|
Test stroke |
0~50mm, adjustable |
|
Power source |
1 Phase, AC220V, 50Hz |
|
Machine size |
450W*370D*500Hmm |
|
Weight |
60kg |
