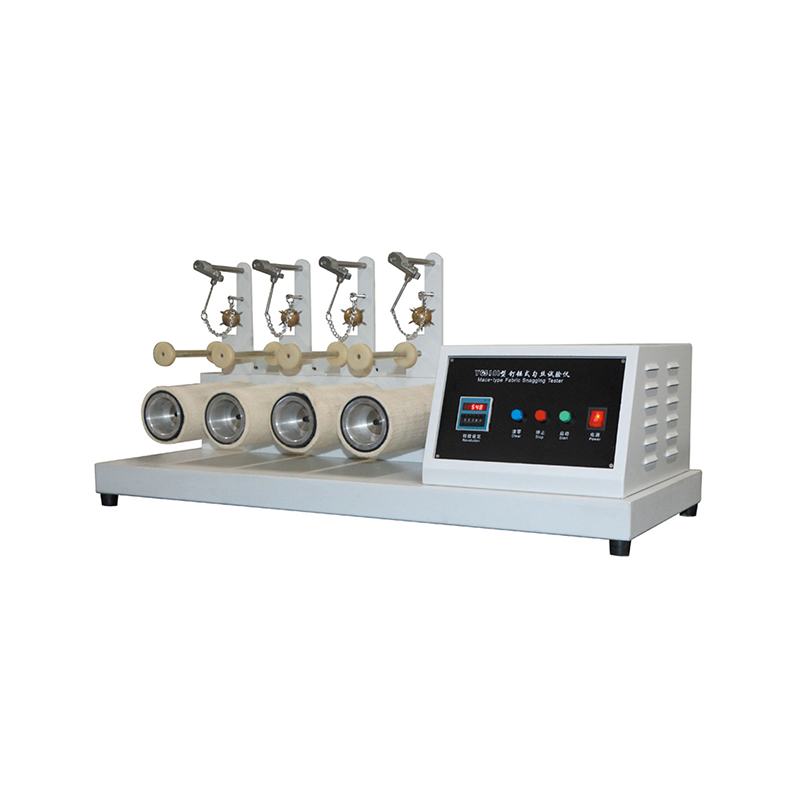

Snagging Resistance Tester (Mace)

Application:

Snagging Resistance Tester determines the snagging resistance of fabrics, it’s applicable for woven and knitted fabrics which made from textured or untextured filament yarns or spun yarns.



Test method:

Place a tubular specimen on a cylindrical drum of Snagging Resistance Tester, then a spiked ball rebounds randomly against the rotating test specimen.

Visual evaluate the degree of fabric snagging by comparison of the tested specimens with fabrics or photographs of fabrics.



Test Standard:

ASTM D3939



Specification:

Test station	4 stations
Rotating speed	60±2r/min
Counter	0~99,999
Cylindrical drum size	Φ82mm, width 210mm
Mace weight	160±10g
Mace needle	11pcs
Needle exposed length	10mm, radius 0.13mm
Felt size	Thickness 3~3.2mm, width 165mm
Guide rod width	125mm
Space between mace and guide rod	45mm
Power source	1 phase, AC220V, 50Hz, 200W
Machine size	630W*450D*650Hmm
Weight	60kg
