R-SA10

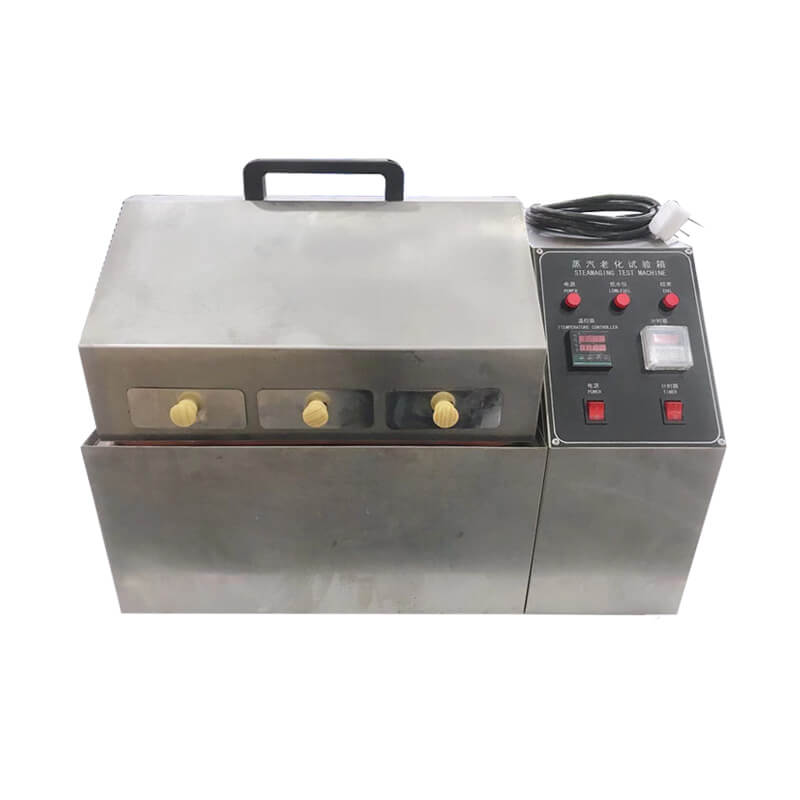

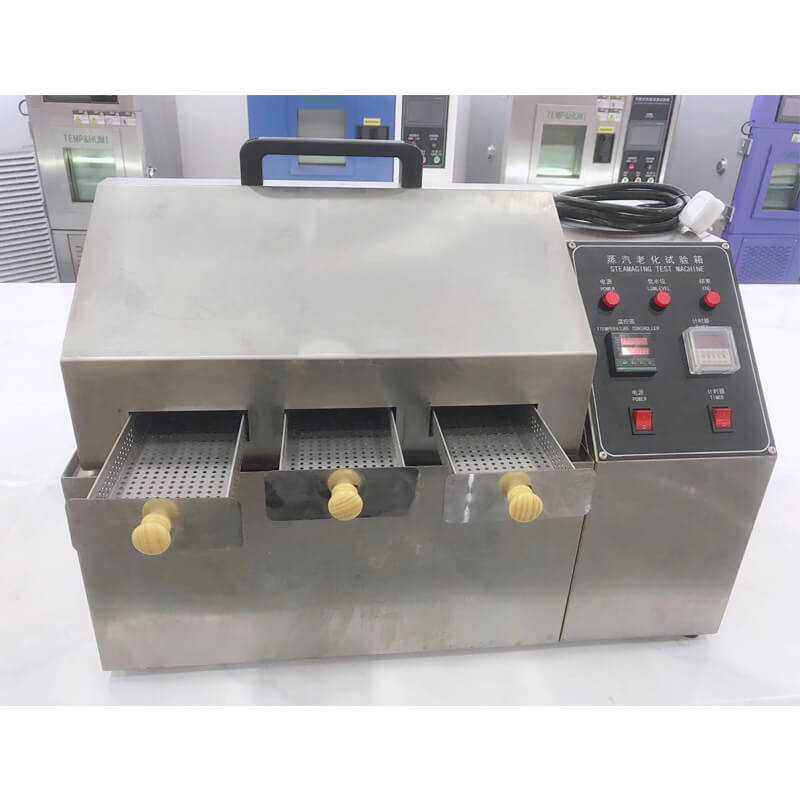

Steam Aging Chamber
Steam Aging Chamber is designed to meet military and commercial Hi-Rel specifications (MIL-STD 202, Method 208, and others) for artificial aging of all electronic components and circuit boards. This includes high density, discrete components, relays, transistors, capacitors, SMT, and axial components.
- Product Model:
- R-SA10
- Design Standard:
- MTL-STP-208F,202
Description
Product description:
Steam Aging Chamber is designed to meet military and commercial Hi-Rel specifications (MIL-STD 202, Method 208, and others) for artificial aging of all electronic components and circuit boards. This includes high density, discrete components, relays, transistors, capacitors, SMT, and axial components.
The main technical parameters:
|
Test area size W×H×D(cm) |
10×5.4×26 |
|
Exterior chamber size W×H×D(cm) |
53×70.5×54.9 |
|
Temperature range |
RT +10℃～98℃ |
|
Temperature fluctuation |
±0.3℃ |
|
Temperature resolution |
±0.1℃ |
|
Heating time |
45 min |
|
Exterior chamber material |
SUS#304 stainless steel |
|
Interior chamber material |
SUS#304 stainless steel |
|
Insulation material |
Fiberglass wool |
|

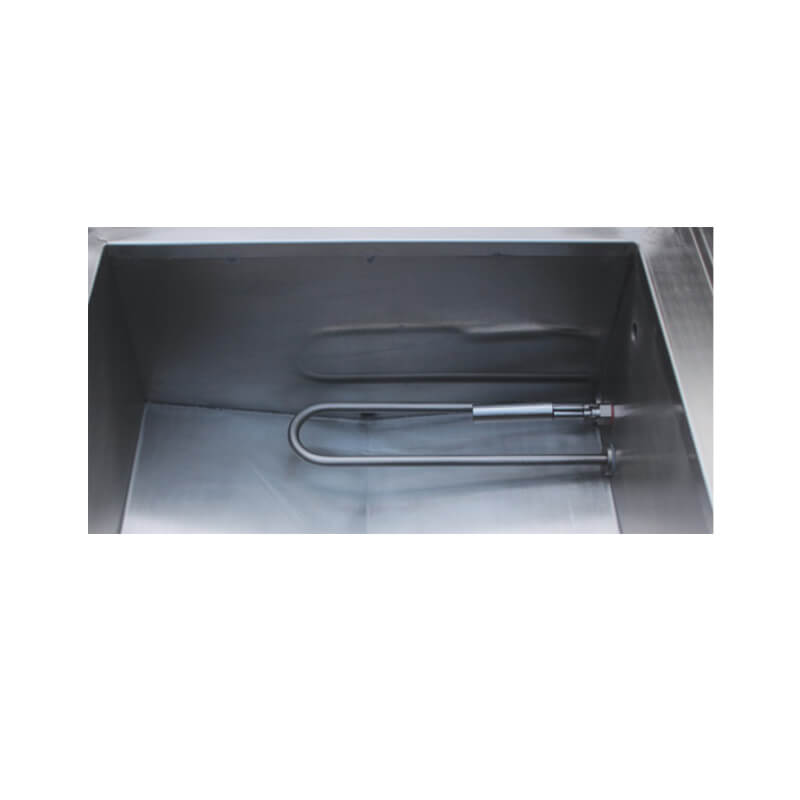

Heating system |
Stainless steel high-speed heater |
|

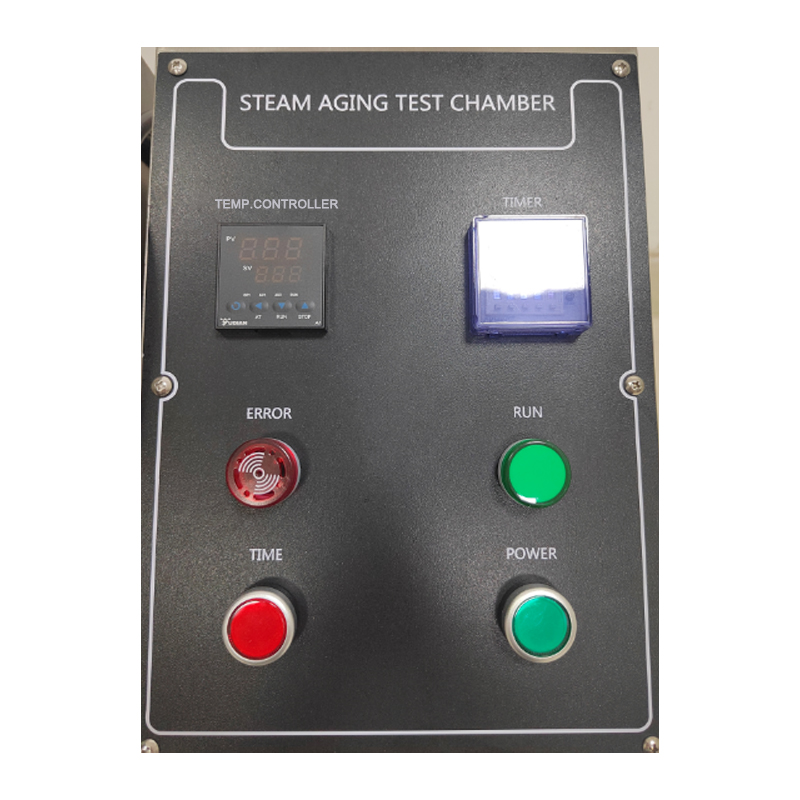

Control System |
Button type digital display controller |
|
Safety device |
Phase sequence protection, over-temperature protection, overload protection |
|
Power supply |
AC 1 phase 220V 60/50Hz |
|
Customization service |
Non-standard or special requirements can be customized. |
