YG522

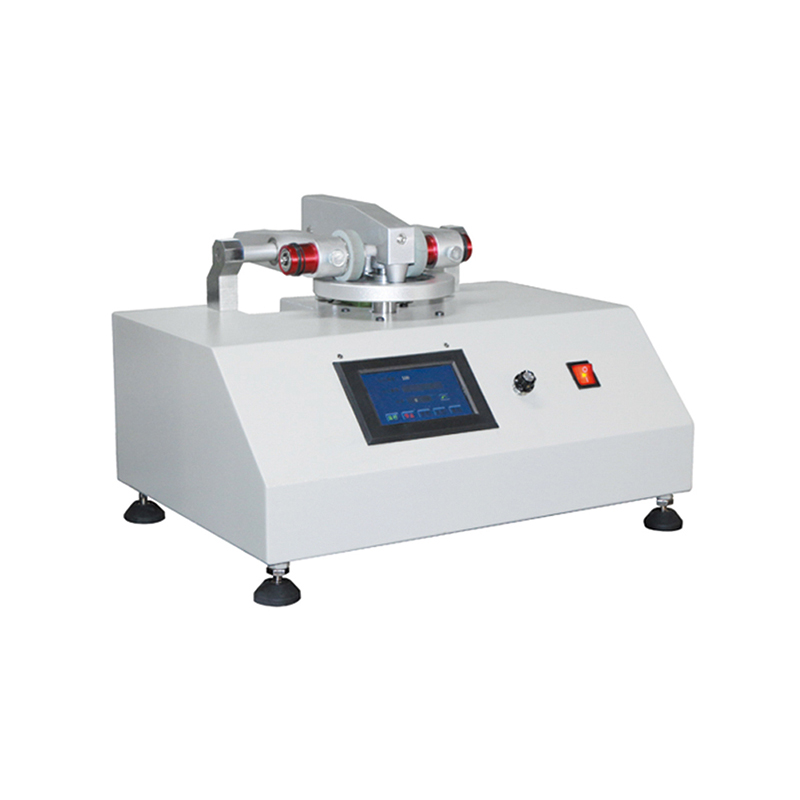

Taber Abrasion Tester
Determine the resistance to abrasion of textile, leather, rubber, plastic, tile products and others, using the rotary platform by evaluating the damage degree of specimen surface, mass in loss and color change.
- Product Model
- YG522
- Design Standard
- ISO 5470-1, ASTM D3884, ASTM D1175, ASTM D1044, DIN 53863.2, DIN 53754, DIN 52347
Description
Application:
Taber Abrasion Tester determines the resistance to abrasion of test specimen using the rotary platform by evaluating the damage degree of specimen surface, mass in loss and color change. It's applicable for textile, leather, rubber, plastic, coating products and others.
Test Method:
Taber Abrasion Tester abrades the specimen by using rotary rubbing under specified pressure and abrasive conditionns.
Mount test specimen on a turntable platform and turns on vertical axis, prevent sliding rotation of two abrasion wheels.
One abrasion wheel rubs the test specimen outward toward the cycle edge, and the other wheel inward toward the center.
Test Criteria:
ISO 5470-1, ASTM D3884, ASTM D1175, ASTM D1044, DIN 53863.2, DIN 53754, DIN 52347…
Specification:
|
Platform diameter |
115mm |
|
Platform rotating speed |
60~80r/min, adjustable |
|
Abrasive size |
φ50mm, thickness 13mm |
|
Counter |
0~999,999 times |
|
Pressure mode |
Add weights |
|
Weights |
250g, 500g, 1000g |
|
Sample thickness |
Max. 20mm |
|
Power source |
1 Phase, AC220v, 50Hz, 1400W |
|
Machine size |
380W*370D*360Hmm |
|
Weight |
30kg |
|
Accessory |
Vacuum cleaner |
