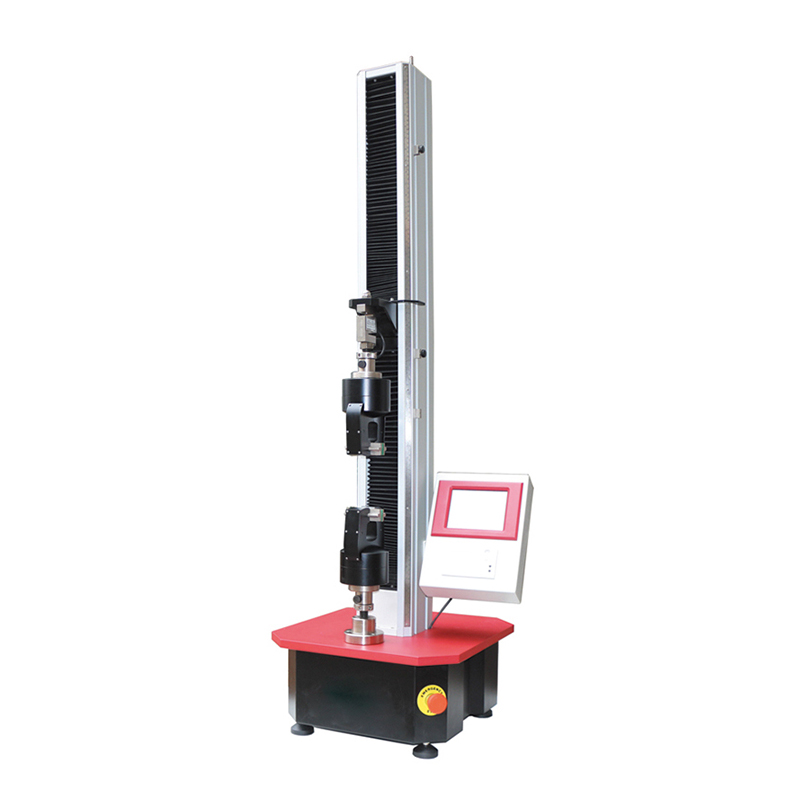

Universal Material Tensile Tester

LABTECH is a high-tech enterprise in China recognized by the Ministry of Science and Technology, focusing on the research and development of simulation environmental test chamber and lab instruments for more than 20 years.

Universal Material Tensile Tester

For all kinds of textile tensile, tear, bursting, elongation, load, elastic, seam, slippage and stripping test which widely used in rubber, plastics, leather, metal, wire, paper& package etc. material.

Product Model: R-TX028
Design Standard: ISO 13934.1, ISO 13935.1, ISO 9073.3/4, ASTM D5035, ASTM D2261
GET A QUOTE

Application:

For all kinds of textile tensile, tear, bursting, elongation, load, elastic, seam, slippage and stripping test which widely used in rubber, plastics, leather, metal, wire, paper& package etc. material.



Test Standard:

ISO 13934.1, ISO 13935.1, ISO 9073.3/4, ASTM D5035, ASTM D2261



Specification:

Range

500N,2500N, 5000N

Test method

Principle of constant speed elongation (CRE)

Force range

1-100% of full range

Force measuring accuracy

Less than 0.2% F-S

Effective acquisition frequency

1,000 times/s

The resolution of the force value

1/100,000

Displacement speed

0.1-1,000mm/min digital speed control, error less than 1%

Displacement resolution

0.001mm

Sample fixture

Manual clamping & pneumatic clamping

Max. stroke

600mm

Power

AC 220V, 50HZ, 500W (can be appointed)
