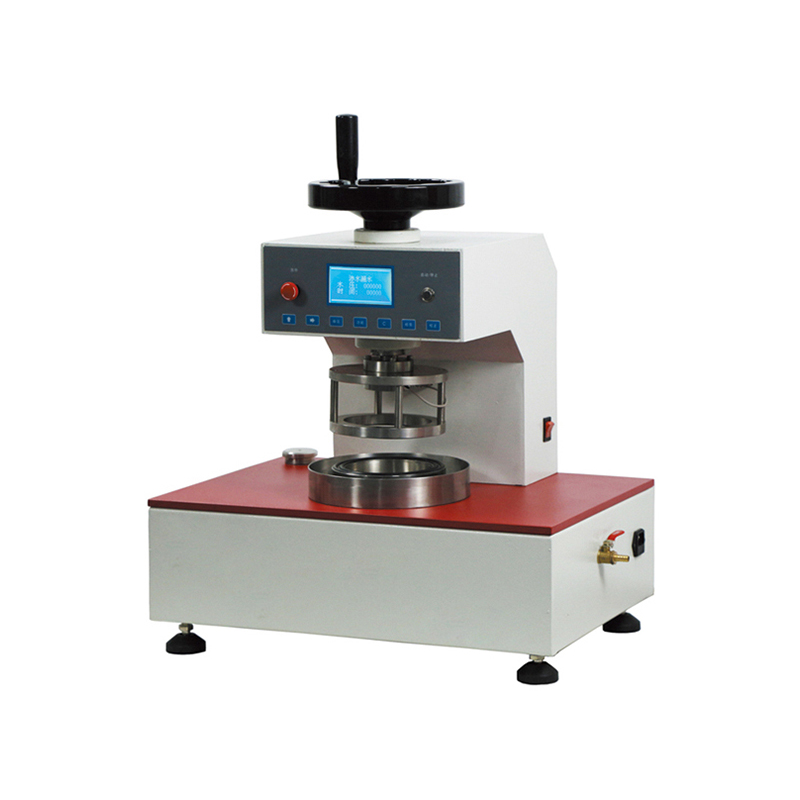

YG812D
Water Permeability Tester
Determine the water penetration resistance of materials by hydrostatic head method, which can be used for all types of fabrics, such as fabrics treated with water proof and water repellent finish.
- Product Model
- YG812D
- Design Standard
- AATCC 127, DIN 53886, JIS L 1092
Description
Application:
Water Permeability Tester determines the water penetration resistance of materials by hydrostatic head method, which can be used for all types of fabrics, such as fabrics treated with water proof and water repellent finish.
Principle:
One side of test specimen is placed under hydrostatic pressure of Water Permeability Tester, then add the pressure at constant rate until three leakage points appear on the other side of test specimen.
Test Standard:
AATCC 127, DIN 53886, JIS L 1092
Specification:
|
Measuring range |
0~200kPa, resolution 0.01kPa |
||
|
Sample area |
100cm2 |
||
|
Compression rate |
1~100kPa/min (adjustable) |
||
|
Testing mode |
Air Permeability Tester consists of 5 types of test modes: Pressurization method; Constant pressure and time; Constant pressure timing; Water seepage and leakage; Deflection test |
||
|
Testing unit |
Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar |
||
|
Sample clamp |
Manual |
||
|
Data output |
Thermal printer |
||
|
Power source |
1 Phase, AC220V, 50Hz, 500W |
||
|
Machine size |
550W*460D*680Hmm |
||
|
Weight |
50kg |
||
