YG813B

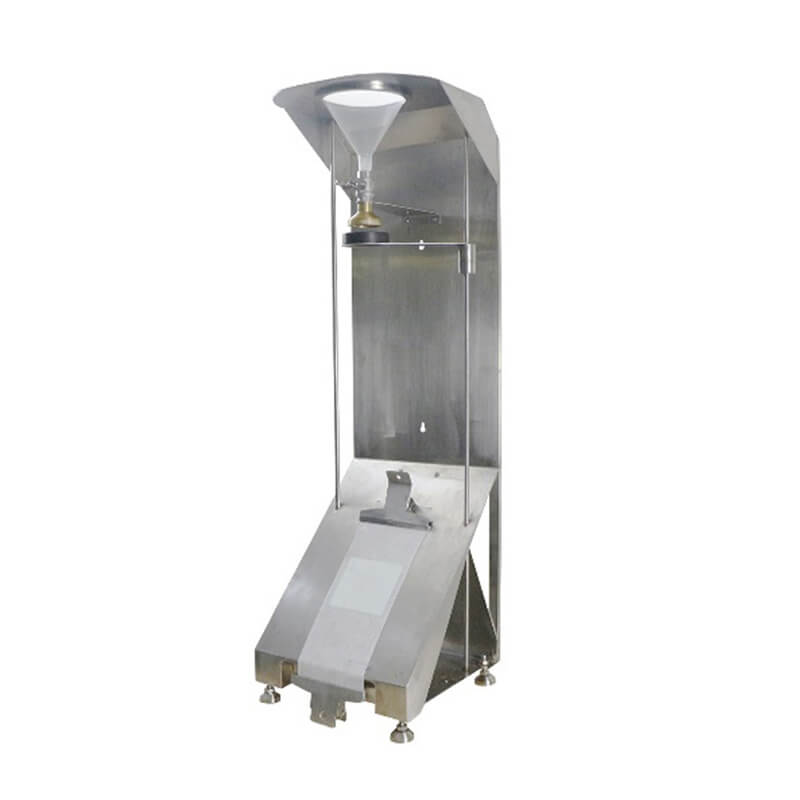

Water Resistance: Impact Penetration Tester
Measure the resistance of fabrics to the penetration of water by impact, it can be used to predict the probable resistance of fabrics to rain penetration.
- Product Model
- YG813B
- Design Standard
- AATCC 42
Description
Application:
Water Impact Penetration Tester measures the resistance of fabrics to the penetration of water by impact, it can be used to predict the probable resistance of fabrics to rain penetration.
Test Standard:
AATCC 42
Principle:
Spray a volume of water against a taut surface of a test specimen which backed by a weighted blotter of Water Impact Penetration Tester. Then reweight the blotter to determine water penetration.
Specification:
|
Specimen size |
178*330mm |
|
Incline angle |
45° |
|
Funnel |
Diameter 152mm |
|
Spray nozzle |
25 holes, diameter 0.99mm |
|
Spring clamp |
Width 152±10mm, with mass 0.454kg |
|
Machine size |
305W*320D*1150Hmm |
|
Weight |
12kg |
Diaghram of Test Apparatus:
