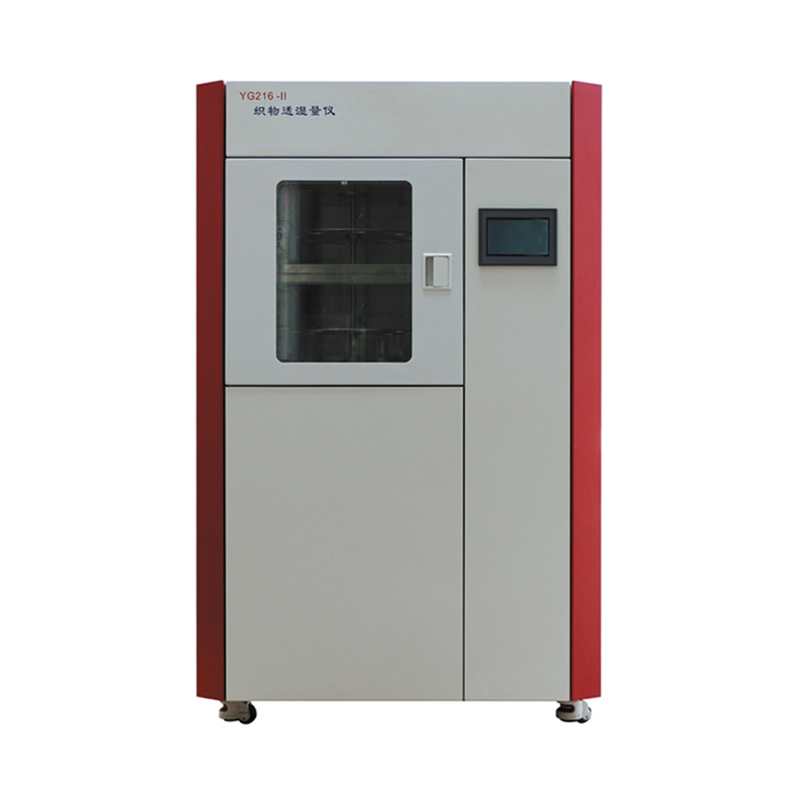

Water Vapor Transmission Tester - 16 Test Dish

Application:

Water Vapor Transmission Tester determines the permeation of water vapor transfer through test specimen, it's applicable to various materials, such as plastic film, paper, sheet materials, fiberboards, gypsum, wood products and plaster products, etc.



Principle:

Seal the test specimen over the open mouth of one of the test dish of which contains water; then place the assembly in controlled atmophere of Water Vapor Transmission Tester. After a period of water vapour pressure across the test specimen, the assembled dish will have successive weighings, and the machine will determines the water vapour permeation.



Test Standard:

ASTM E96, JIS L1099, BS 7209



Specification:

Temperature	18~50℃, control accuracy ±0.5℃
Humidity	40%~95%RH, control accuracy ±1%RH
Airflow rate	0.1~0.8m/s
Test dish	Double turntables, 16pcs
Controller	Touch screen controller, PID calculate method
Test data	WVT, WVP, PV value
Data output	Water Vapour Transmission Tester adopts RS232 to connect PC to record temperature and humidity curve, print test report
Power source	1 Phase, AC220V, 50Hz, 4000W
Machine size	1050W*635D*1700Hmm
Weight	230kg
