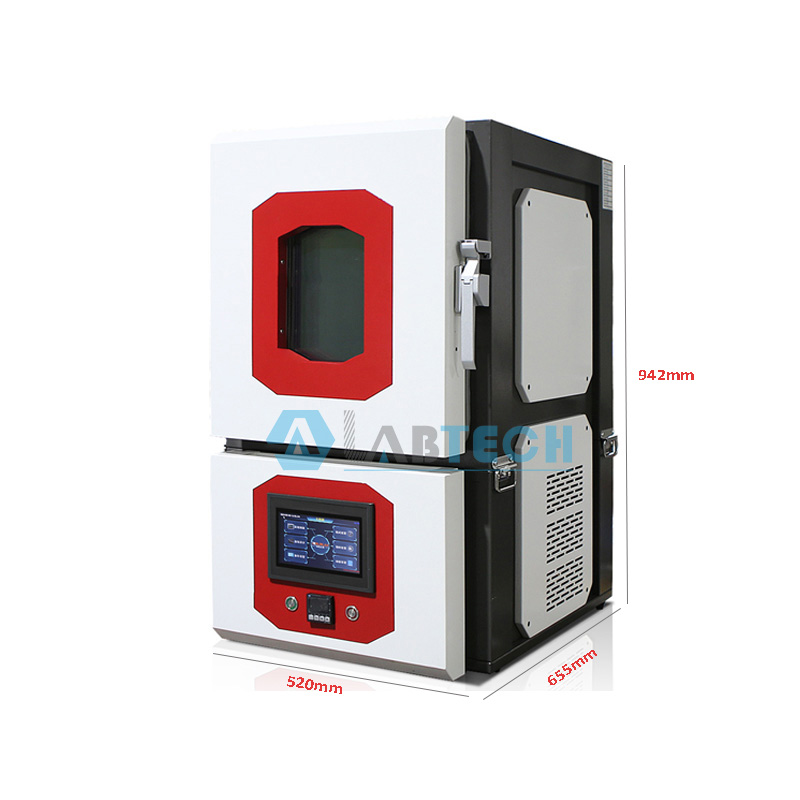

Benchtop Environmental Chamber


Benchtop Environmental Chamber is designed as a benchtop type for small sample or limited space laboratory. The temperature range can be -40 to +150℃.

Desktop type Climatic Chamber is widely applied for small sample on industries like plastic, automotive, electronics for storage test, temperature performance test, etc.

Product Model: R-TH-50
Design Standard: IEC60068-2, ISO16750, JESD22

Do you have small specimen required to test or do you have problem of limit space in your lab?
Our Benchtop Environmental Chamber is especially designed for small parts, like silica gel, sensors, components to do temperature humidity test or stability test. Small Temperature Chamber fits to customer lab or factory that has problem of limit space. It is very cost-effective choice for customers who require to do environmental test.



Application:

Benchtop Environmental Chamber is designed as a benchtop type for small sample or limited space laboratory. The temperature range can be -40 to +150℃.

Desktop type Climatic Chamber is widely applied for small sample on industries like plastic, automotive, electronics for storage test, temperature performance test, etc.



Test Standard:

IEC60068-2-78, IEC60068-2-30, IEC60068-2-38, IEC60068-2-66

ISO16750, JESD22

GB/T2423.3, GB/T2423.4, GB/T2423.34, GB/T2423.40, GB/T 14710:2009, GB/T 13543



Specification:

Capacity

50L

Internal size (W*H*D)

350*400*350mm

External size (W*H*D)

520*942*655mm

Material

Inner SUS304, exterior Cold-rolled steel plate baking finish

Temperature range

-40 to +150℃; -20 to +150℃; 0 to +150℃

Controller

PLC Touch screen

Compressor

France imported Tecumseh compressor

Temperature change rate

3-4℃/min heat-up;

1℃/min cool-down

Features

1. Special size design for space and cost save

2. Touch-screen PLC controller

3.  Two sets chambers can be stacked

4. USB port for test data output and print

5. Test start fast and  high accurate test date with fluctuation less than ±0.5℃

6. CE mark and certificate provided

7. Cable port with diameter 50mm for test sample powered on during test

Benchtop Chamber Program Controller Advantages:
Large color touch screen operation
Set temp and humidity in constant mode and programmable mode
Temperature humidity set value curve display and real-time curve display
120 groups program with 12000 segment memory; each segment 99Hour59Min
Test data can be downloaded as required though USB port
Test software can be displayed and controlled by connecting PC via RS232 or RS485 port
Ethernet is optional for remote control

Safety protection:
Over-temperature protector: can be set higher than test temp to protect safety from emergency.
Buzzer: Alarm indicator for faults occur
