High Low Temperature Test Chamber

High Low temperature test chamber is suitable for aerospace products, all kinds of electronic components and materials in high temperature, low temperature or damp environment, to test the reliability of the performance.

Product Model: RS-TH series
Design Standard: ISO16750; JESD22; IEC60068-2-30; IEC60068-2-78; IEC60068-2-66; IEC60068-2-38

Application:
High Low temperature test chamber is suitable for aerospace products, all kinds of electronic components and materials in high temperature, low temperature or damp environment, to test the reliability of the performance.

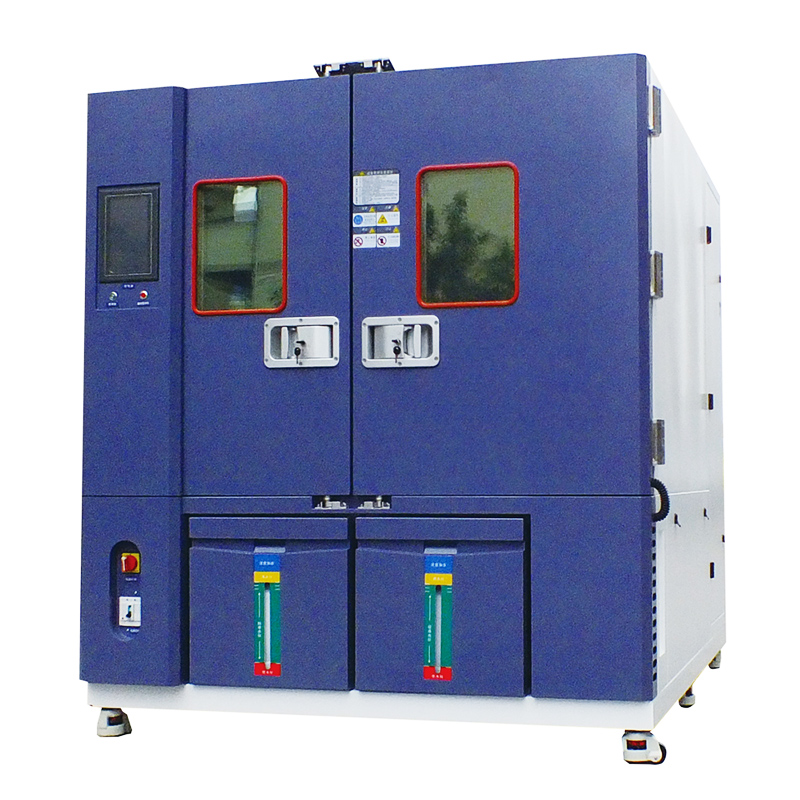

Labtech can provide a wide selection for Environmental Test Chambers to perform temperature humidity test. Lowest temperature can be down to – 80℃ and highest temperature can be up to 200℃. Humidity range can be chosen from 5% to 98%. Size range of environmental chambers also can be customized as per customer requirements from small one to test small parts, which can save room and cost and to large size of walk-in environmental chamber for testing motorbike, automobile or test many items at the same time like computer, screens.

Test Standard:

IEC 60068-2

Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)

Environmental testing - Part 2-38: Tests - Test Z/AD: Composite temperature/humidity cyclic test

Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state

ISO 16750-1

Road vehicles — Environmental conditions and testing for electrical and electronic equipment

JESD22

A100 – Cycled Temperature Humidity Bias Life Test

A101 – Steady-State Temperature-Humidity Bias Life Test

A103 – High Temperature Storage life

A104 – Temperature Cycling

A110 – Highly Accelerated Temperature and Humidity Stress Test

A119 – Low Temperature Storage Life


Specifications:

Model

RS-TH series High Low Temperature Test Chamber

Inner capacity

64L, 100L, 225L, 800L, 1000L (can be customized)

Temperature range

-70C ~ +200C (can be customized)

Humidity range

5% ~ 98%RH (can be customized)

Temperature rate

3C/min – 20C/min ( can be customized)

Temp & Humi.  Fluctuation

≤ ± 0.5C; ≤ ± 2%RH

Temp & Humi. Deviation

≤ ± 2C; ≤ ± 3%RH

Temp & Humi. Uniformity

≤ ± 2C; ≤ ± 3%RH

Cooling mode

Air-cooled or water-cooled

Heat load

Heating of sample less than 300W ( can be customized)

Inner material

SUS# 304 stainless steel

Controller

PLC touch screen controller, can perform constant and cyclic test

Features

1.Innovative technology: independent research and development control system (soft write the word "3642019"), with refrigeration PID control to tell the processing ability, control small cooling capacity, save power consumption;

2.Option: Air cooled or water cooled refrigeration system and temperature control range of high temperature side can be configured;

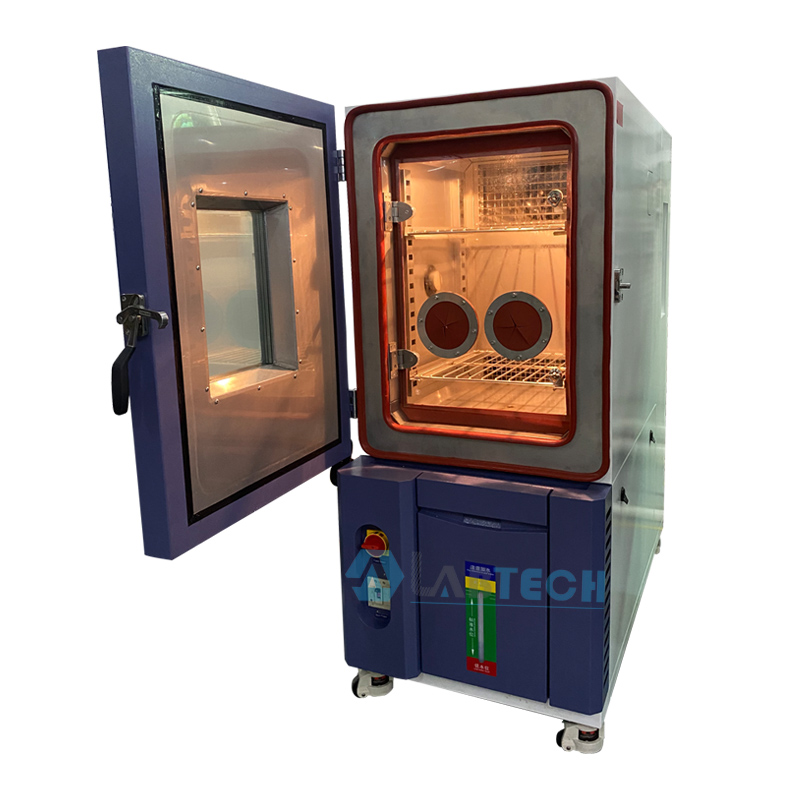

3.Customized on demand: you can choose the combination of door, observation window and operation hole according to the use conditions, and customize the size and temperature range as required;

4.High mute: up to 65dB mechanism mute standard;

5.High intelligence: Ethernet monitoring & control; USB, RS-485 serial communications, use USB curve export to save;

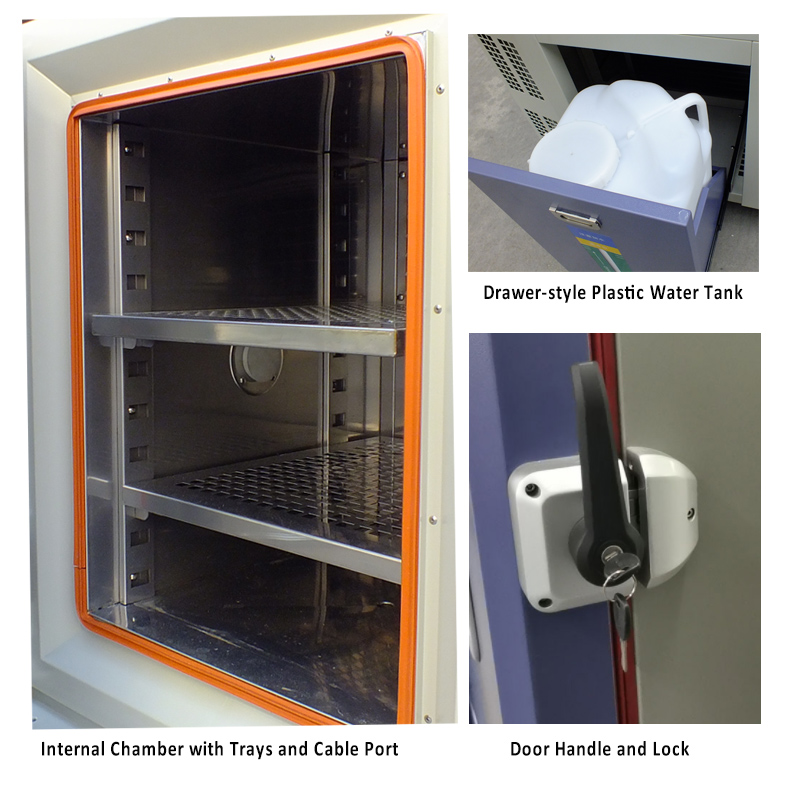

6. Single-handed, lockable door latch; 1~3, 4"(10cm) circular ports;

7. Fog-free viewing window & interior light;

8. With a full engineering team on staff, we can customized a variety of options to meet our clients needs.
