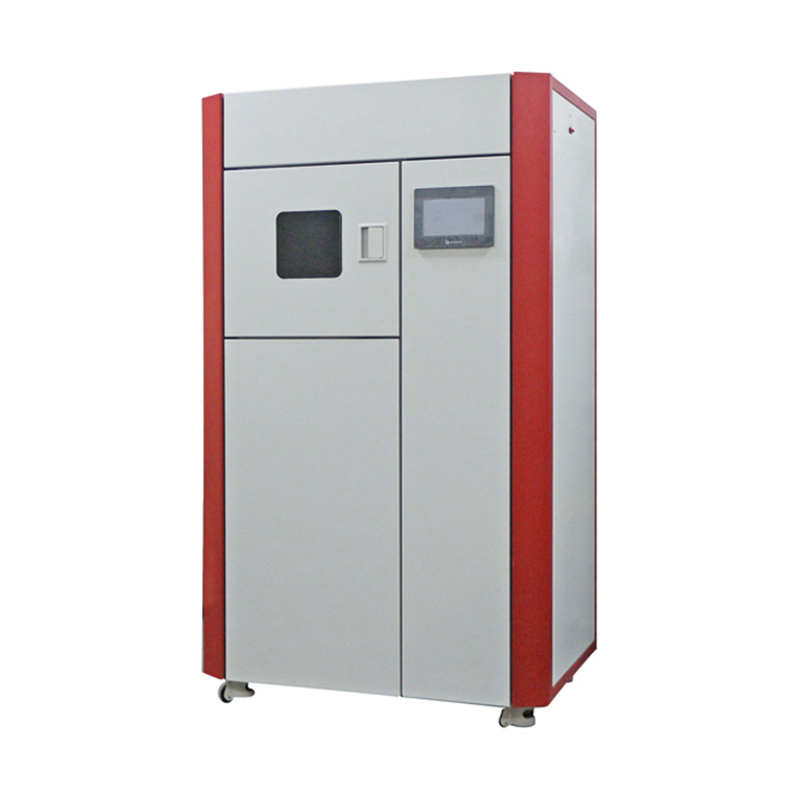

Color Fastness Tester (Xenon Chamber - Air Cooled)

Determine the effect of artificial light sources that represents natural sunlight on the colour of textiles, which includes the function of temperature, humidity, water spray and condensation.

Product Model: YG611
Design Standard: ISO 105-B2, ISO 105-B4, AATCC TM 16

Application:

Color Fastness Tester determines determines the effect of artificial light sources that represents natural sunlight on the colour of textiles, which includes the function of temperature, humidity, water spray and condensation.



Test Standard:

ISO 105-B2, ISO 105-B4, AATCC TM 16



Specification:

Model No.

YG611-II

YG611-III

Chamber temperature

25~50℃, resolution 0.1℃

25~70℃, resolution 0.1℃

Exposure humidity

10~70%RH, resolution 0.1%RH

10~70%RH, resolution 0.1%RH

Dark humidity

30~95%RH, resolution 0.1%RH

30~95%RH, resolution 0.1%RH



BST

40~85℃, accuracy ±1℃, resolution 0.1℃

40~105℃, accuracy ±1℃, resolution 0.1℃

BPT (optional)

40~80℃, accuracy ±2℃, resolution 0.1℃

40~80℃, accuracy ±2℃, resolution 0.1℃

Irradiance range

0.80~2.01W/m2@420nm,

accuracy ±0.02W/m2@420nm

0.8~1.2W/m2@420nm,

accuracy ±0.02W/m2@420nm

Wavelength range

340nm, 420nm, 300~400nm, 200~800nm optional

Xenon lamp power

3000W

2500W

Turntable rotation

5r/min

2~7rpm

Sample fixture

9pcsx2

6pcs

Controller

PLC, digital and diagram display, exposure and water spray period ≤1,000h

Power source

1 Phase, AC220V, 50Hz, 6.5KW

Machine size

920W*650D*1680Hmm

Weight

180kg
