Application:

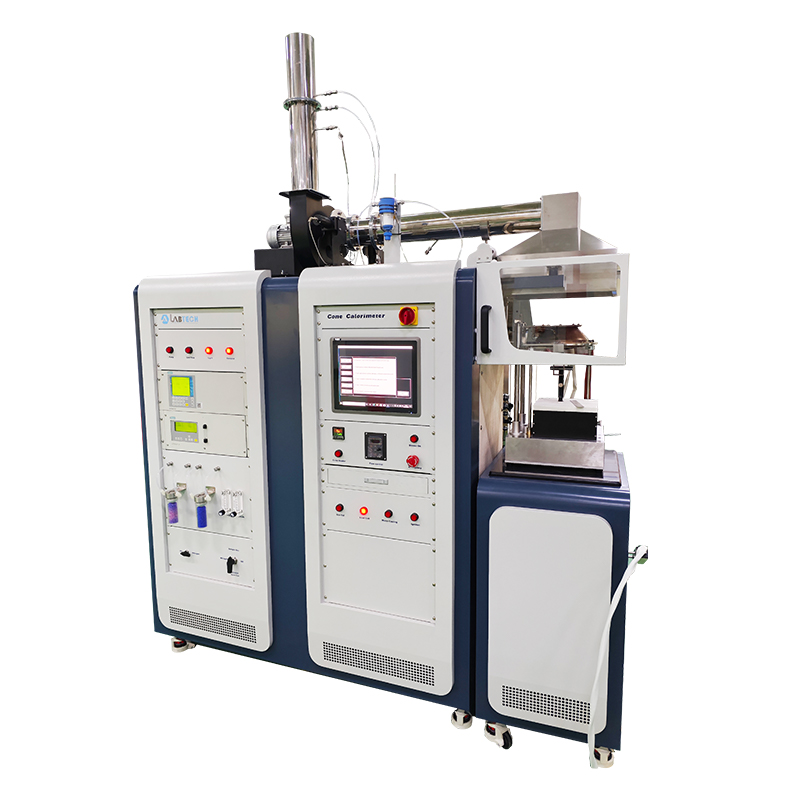

Cone Calorimeter measures the heat release rate of materials based on the principle of oxygen consumption.
The principle of oxygen consumption is that the heat released by each unit of oxygen consumed when the material is burned is basically the same.
When test sample is exposed to heat source of cone heater, Cone Calorimeter can measure the heat release rate, smoke generation rate, ignition time, oxygen consumption status, carbon monoxide, carbon dioxide generation and mass loss rate of the sample.
Test Standard:
ISO 5660-1, ASTM E1354, BS 476
Specification:
|
Control system
|
PC with software, collect test data and calculate
|
|
Machine size
|
1800W*830W*2700Hmm
|
|
Gas source
|
Methane, purity > 99.5% (supplied by user)
|
|
Power supply
|
1-phase, AC220V, 50Hz, 30A
|
|
Weight
|
350kg
|
|
Features
|
|
01
|
Test area equips with tempered glass for observation and protection during testing.
|
|
02
|
Brass calibration burner by clip-on installation method is used to calibrate the power of radiation cone.
|
|
03
|
The bottom of sample holder is equipped with imported weighing sensor for timely monitoring the weight loss.
|
|
04
|
Calibration burner adopts MFC to control the flow rate.
MFC range 10L/min; accuracy ±1%F.S.; linearity ±0.5%F.S.; response time ≤2 sec
|
|
05
|
Rated power of radiation cone: 5000W; heat output: 0~100 kW/m2
|
|
06
|
Spark igniter is convenient to measure burning time.
|
|
07
|
Imported heat flow meter, range of 0~100 kW/m2, accuracy ±3%, repeatability ±0.5%; with calibration report;
Portable cooling water source is provided, no need external water source.
|
|
08
|
Imported paramagnetic O2 analyzer and infrared CO2 analyzer;
Oxygen range: 0~25%, accuracy <0.02%, repeatability <0.01%;
CO2 range: 0~10%, accuracy 0.1 ppm;
CO range: 0~1%, accuracy 0.1 ppm, repeatability 0.1 ppm;
Response time < 8s
|
|
09
|
Specimen gas pretreatment system consists of suction pump, various levels of filtering devices, condensers, flow limiting and splitting devices for providing stable specimen gas to analyzer.
|
|
10
|
Equipped with laser transmitter and silicon optical amplifier for measuring gas density in the tube, and have optical path correction device.
|
|
11
|
Several combustion parameters: heat release rate (HRR), total release heat (THR), effective heat of combustion (EHC), ignition time (TTI), Mass loss rate (MLR), smoke generation rate (SPR), total smoke generation, CO2/CO generation.
|
