R-FS Series

High Pressure Water Spray Test Chamber- IPX9K

IPX9K High Pressure Water Spray Test Chamber conforms to IEC 60598 & 60529 water test standards for luminaires, automotive and electronic product requirements.

Product Model
R-FS Series
Design Standard
IPX9K, IEC 60598, 60529
WhatsApp

Description

Application:

IPX9/9K High Temperature and High Pressure Water Spray Test Chamber conforms to IEC 60598 & 60529 water test standards for luminaires, automotive and electronic product requirements.



Test Standard:

IPX9K, IEC 60598, 60529, ISO 20653

Specification:

Item

Specification

Internal dimension (W*D*H)

1000*1000*1000mm

External dimension (W*D*H)

1600*1250*2100mm

Spray water temperature

80℃

Spray water pressure

80 to 100bar (8000 to 10000Kpa)

Water flow

14 to 16L/min

Spray water distance

10 to 15cm

Spray water angle

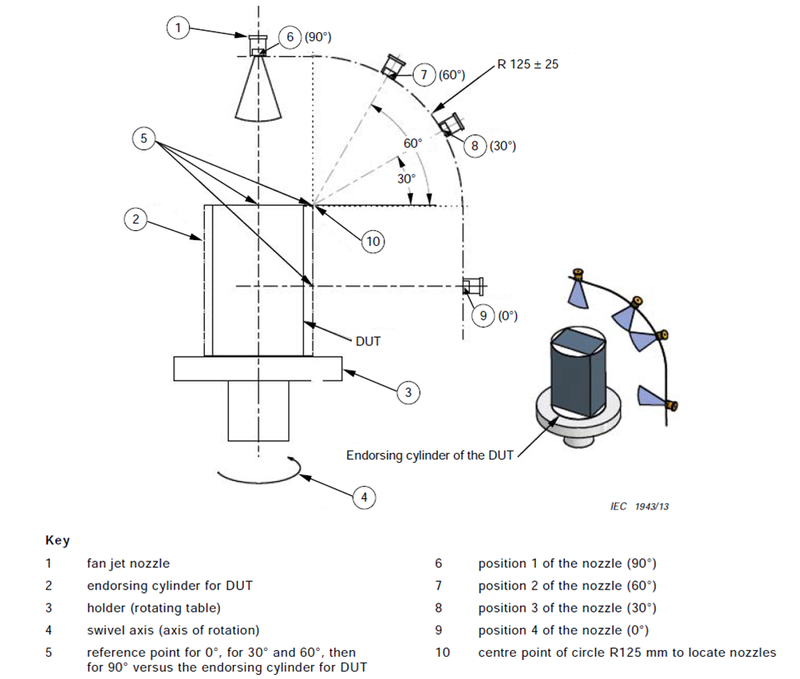

0°, 30°, 60°, 90°, each angle spray for 30 seconds

Sample turntable

5±1rpm

Water spray interval time

30 seconds (adjustable)

Water cycling system

Built-in chamber bottom for recycling

Controller

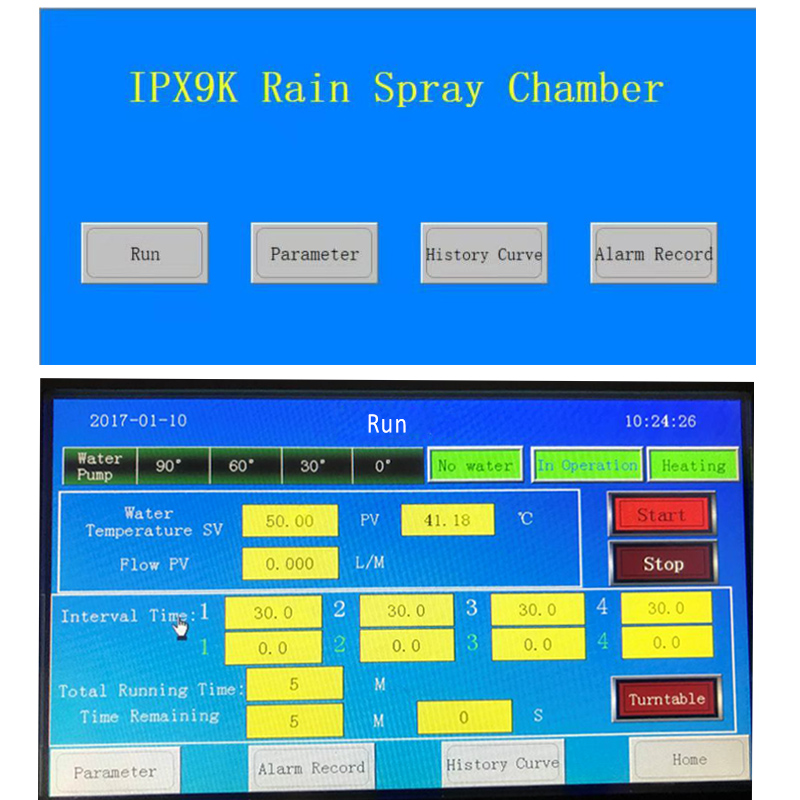

PLC touch screen

Chamber material

Internal: SUS304 stainless steel, external: stainless steel



Features of IPX9/9K High Temperature and High Pressrure Water Spray Test Chamber:

1. Chamber material: SUS304 stainless steel.

2. Equipped with water tank for recycling use of water. And also water level floating ball in water tank is used for water level alarm detection to avoid water shortage.

3. PT-100 Temperature sensor for high precision of water temperature.

4. Observation window with windscreen wiper on the door for easy observing test situation.

5. Turntable in SUS304 stainless steel can be rotated by speed (5±1) r/min for easy test.

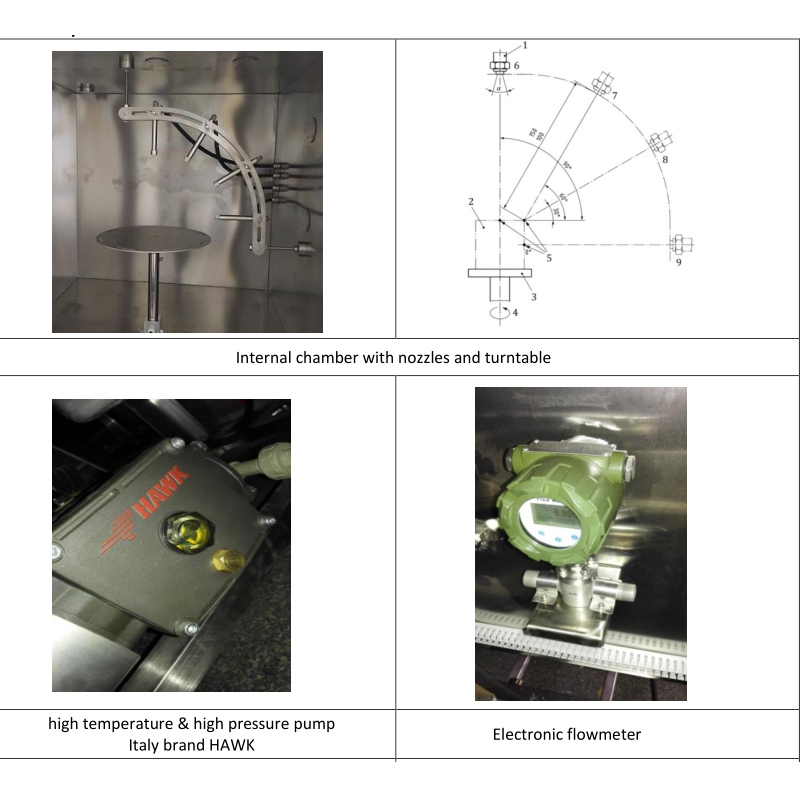

6. Jet nozzles can be adjustable for different size tested sample.



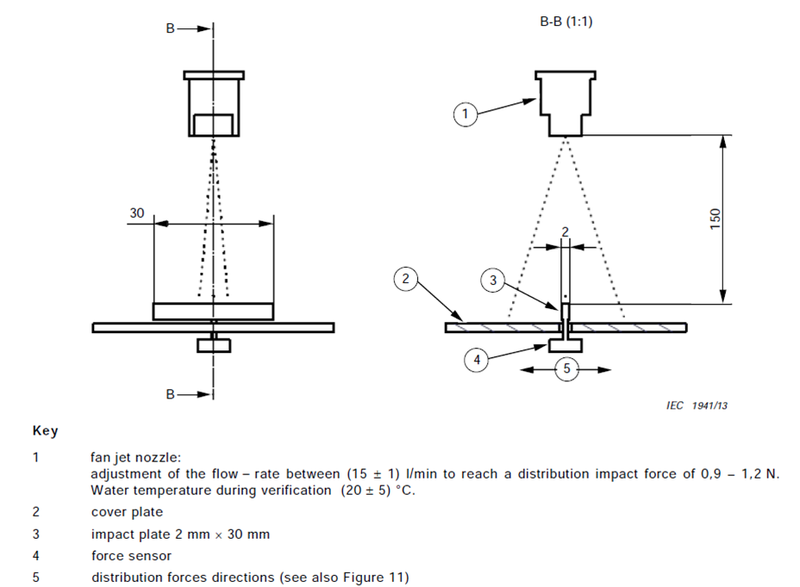

Test device:
