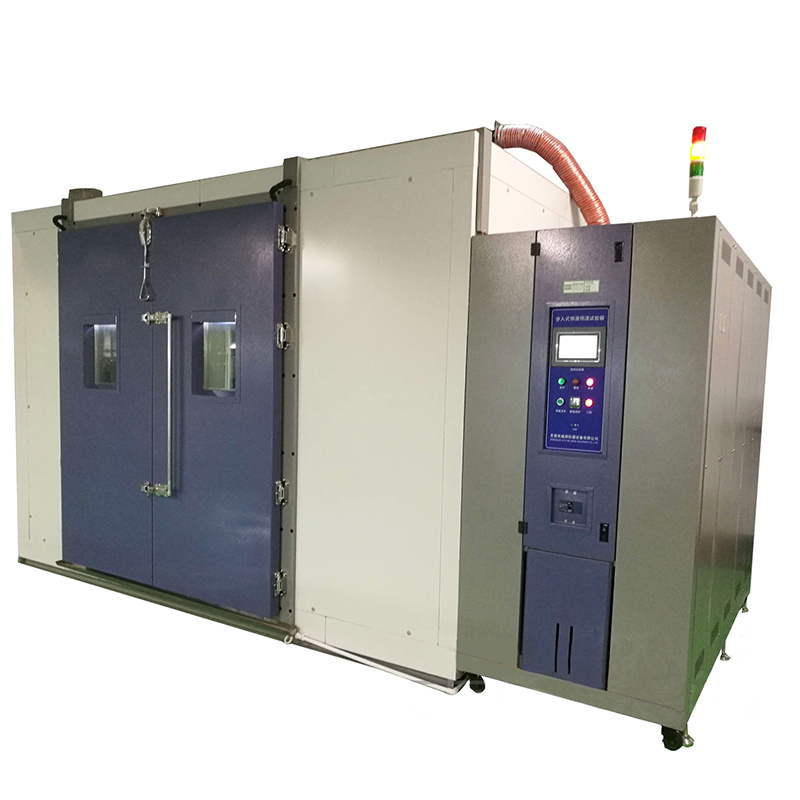

Walk-in Climatic Chamber for Photovoltaic PV Modules Testing

To thrive in the solar energy sector, manufacturers and retailers need to ensure that their products meet established quality and performance standards. This means demonstrating that their PV modules are robust and able to consistently deliver the guaranteed rated power reliably even under more severe climactic conditions.



Labtech Walk-in Climatic Chamber can do Thermal Cycle Test, Humidity-freeze Test and Damp Heat Test as per Standard IEC61215-2:2016.

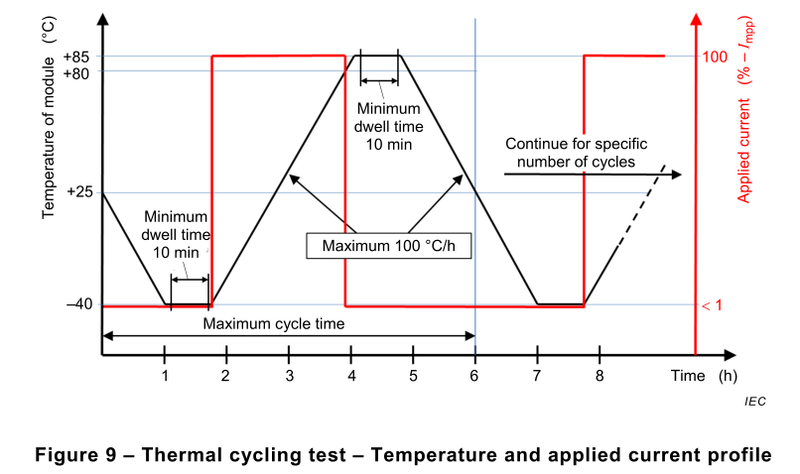

Thermal Cycle Test (Figure 9):

Temperature Range: -40℃±2to +85℃±2

Test Cycle: 50 cycles and 200 cycles

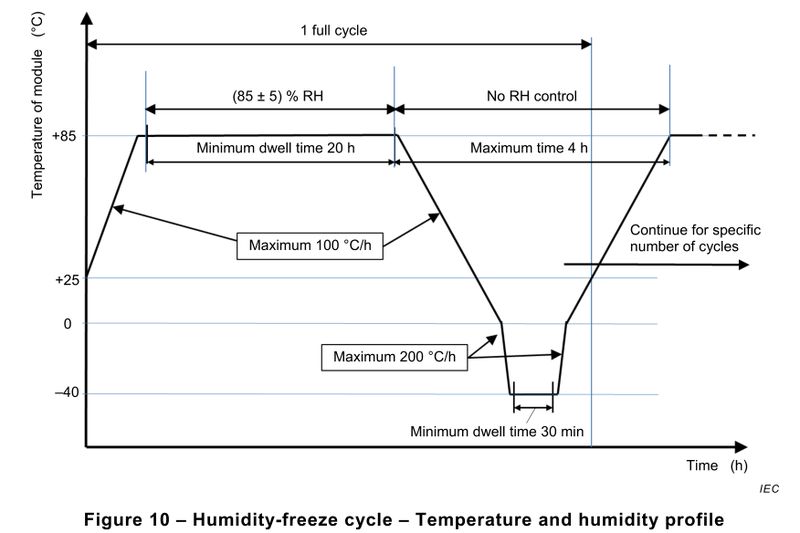

Humidity-freeze Test (Figure 10):

Temperature Range: -40℃±2to +85℃±2

Humidity: (85±5)%

Test Cycle: 10 cycles






Damp Heat Test:

Test Temperature: (85±2)

Relative Humidity: (85±5)%

Test Duration: (1000+48) h
