Automatic Distillation Tester

By using a laboratory batch distillation unit to determine distillation of Petroleum products and fuels at atmospheric pressure as per ASTM D86.

Product Model: R-SY-6536 Series
Design Standard: ASTM D86

Application:

ASTM D86 Automated Distillation Tester is applied to determine atmospheric distillation of petroleum products  by adopting a laboratory batch distillation device to measure their the boiling range characteristics quantitatively.

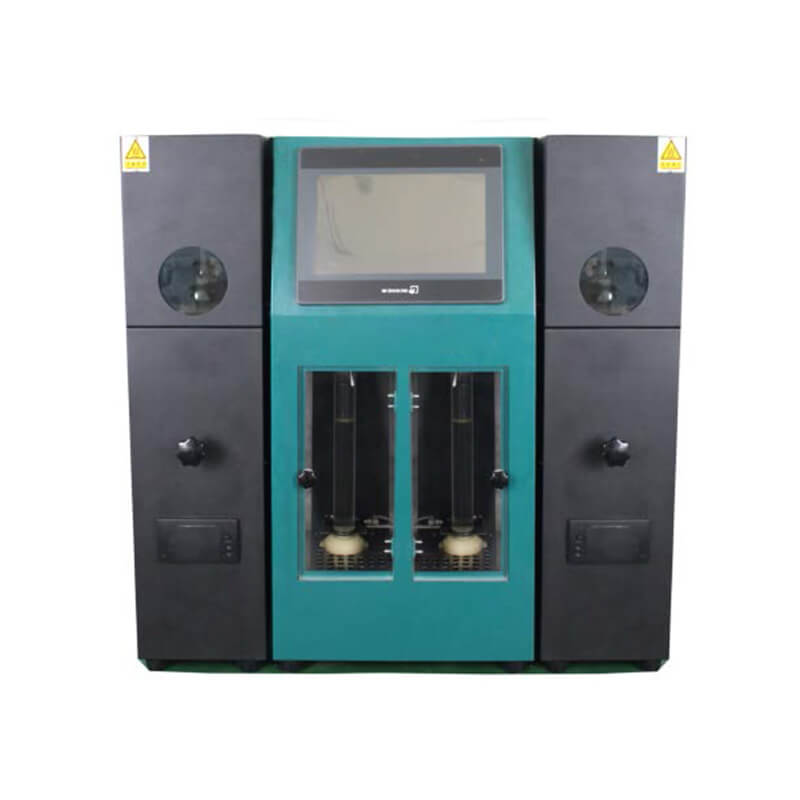

Labtech can provide Automatic Distillation Test Equipment with different types to test one sample or two samples at the same time.



Test Standard:

ASTM D86



Specification:

Model

R-SY-6536ZD

R-SY-6536ZDS

Temperature measurement range

R.T. to +400℃

Temperature accuracy

±0.1℃

Heat way

Quartz heating tube

Control way

LCD Touch Screen

Cooling way

Compressor

Sample volume range

0-100ml

0-100ml for one pipe

Volume resolution

0.1ml

Distillation rate

4~5 ml /min (Auto-adjust)

Condenser pipe

Single

Double

(can do separate test or comparison test)

Print

Built-in printer

Power

1-PH, 220V, 50Hz

Accessories list

125mL distillation flask: 1pc

100mL receiver cylinder:1pc

Measuring Cylinder: 2pcs

Guide Vane: 2pcs

Port cover: 1pc

Heating furnace support plate: 1set

silica gel plug: 1pc

Sensor Rubber Block: 1pc

Nitrogen Pipe: 1pc

Drainage Pipe: 1pc

Printer Paper: 1roll

Fuse 20A: 2pcs

Power wire: 1pc

English manual: 1pc



Features:

1. Automatic control throughout test procedures; Temperature control, sample volume tracking, real-time temperature recording and test results saving are performed automatically.

2. 10 Inch high-definition touch screen LCD display, Chinese/English user HMI.

3. Brand-new sample volume tracking system utilizes high precision step motor to drive ball round circular positioning screw and linear laser tracker to achieve precision measurement. Automatic detection of sample recovery volume.

4. After test, sample level tracking system automatically returns to the “0mL” position.

5. Imported Danfoss compressor for condenser tube and recovery room refrigeration.

6. This instrument is equipped with flame detector with automatic fire extinguishing function. It features temperature, volume and atmospheric pressure correction functions.

7. Automatic control of distillation rate and automatic final boiling point detection.

8. Heating rate settings can be recalled at any time according to sample type to ensure required distillation rate.

9. It is equipped with residue volume input function.

10. The instrument displays and prints IBP, temperature/5%, distillation time, FBP in real time.
