Application:

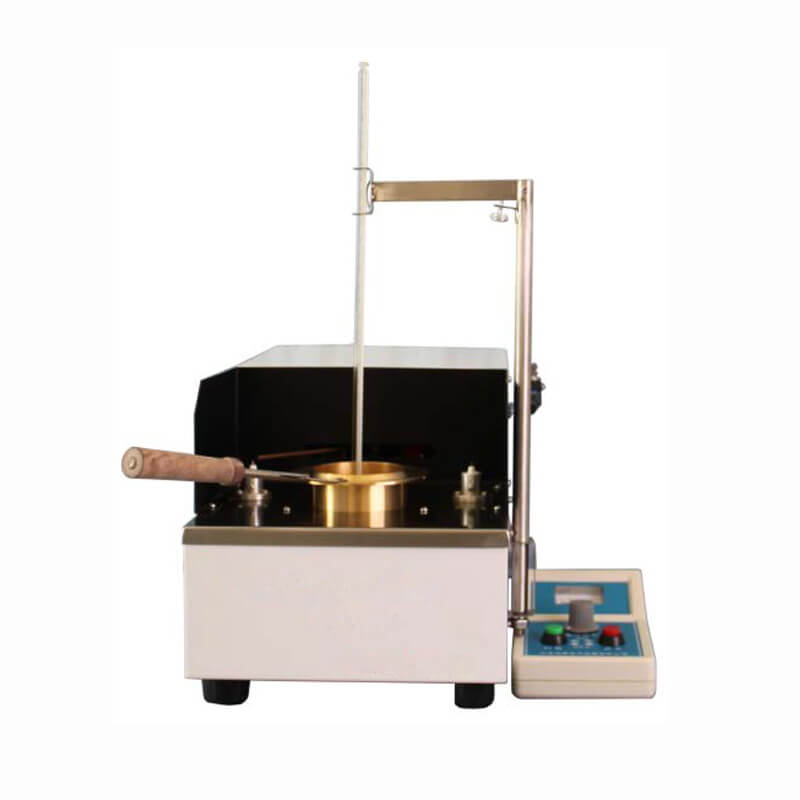

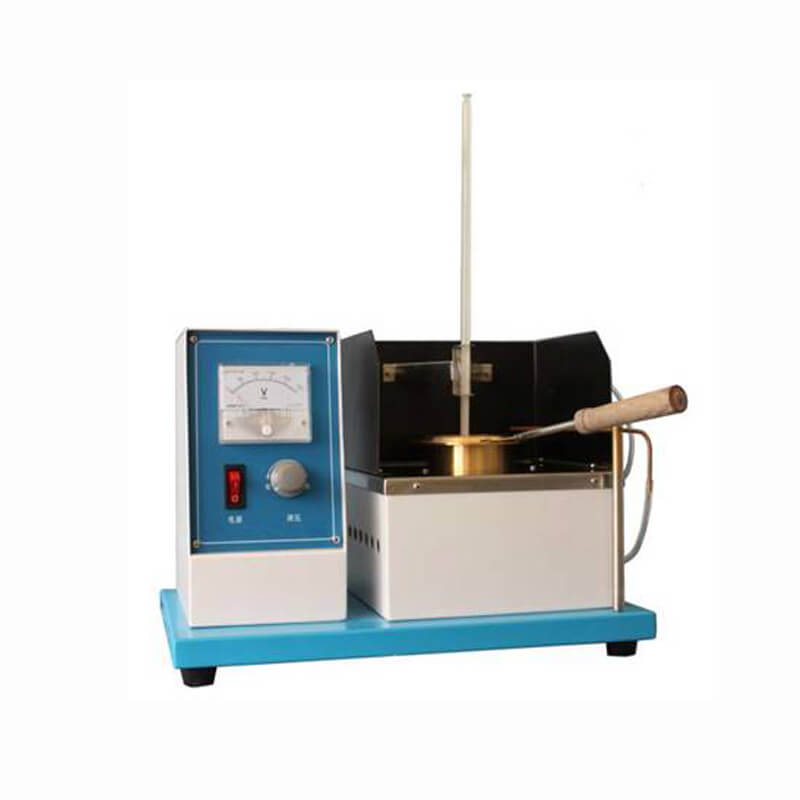

Open Cup Flash Point Tester (Cleveland Open Cup Method) is using a manual Cleveland open cup apparatus or an automated Cleveland open cup Apparatus to determine flash point and fire point of petroleum products in temperature range from 75℃ to 400℃.
All petroleum products except fuel oils can be performed by this Cleveland Open Cup test method for flash and fire point below 400℃ and above 75℃.
Labtech can provide both manual and automated type Cleveland open cup flash point apparatus for diferent customers choosing with very competitive price.
Test Standard:
ASTM D92
Specification:
|
Model
|
R-SY-3536A
|
R-SY-3536B
|
R-SY-3536ZD (Automatic)
|
|
Measurement range
|
R.T. to +400℃
|
|
Resolution
|
1℃
|
0.1℃
|
|
Flash point accuracy
|
±2℃
|
|
Heating rate
|
Manual
|
5-6℃/min
|
|
Ignition
|
Manual
|
Remote control
|
Electronic ignition, electronic flame, no gas source required to ensure environment friendly and laboratory safety
|
|
Control way
|
Manually read the thermometer
|
LCD Touch Screen
|
|
Fire source type
|
Air source
|
No need air source, Electronic ignition
|
|
Print
|
/
|
Built-in printer
|
|
Data storage
|
/
|
Automatic for 200 groups
|
|
Power
|
1-PH, 220V, 50Hz
|
Advantages for R-SY-3536ZD Automated Cleveland Open Cup Flash Point Tester:
1) Short response time and high sensitivity;
2) Auto air pressure measurement and pressure compensation after test;
3) Fault self-diagnosis system and reminder functions;
4) Large memory capacity for test results storage with 200 groups;
5) Automatic alarm and shutdown functions;
6) Detection mechanism is lifted down during test and lifted up after test finished automatically.
7) When set temperature is reached, it will ignite automatically, test sample and then test results will be saved and printed automatically when test is finished. The complete test procedure is done automatically.
