Kinematic Viscosity Tester

Determine kinematic viscosity of liquid petroleum products including transparent and opaque liquid, by time measurement for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer as per ASTM D 445.

Product Model: R-SY-265 Series
Design Standard: ASTM D445

Application:

Kinematic Viscosity Test Instrument is designed as per ASTM D 445 to determine kinematic viscosity of liquid petroleum products including transparent and opaque liquid, by time measurement for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer. Labtech can provide both manual and automated type of Kinematic Viscosity Tester for customer choosing.



Test Standard:

ASTM D445



Specification:

Model

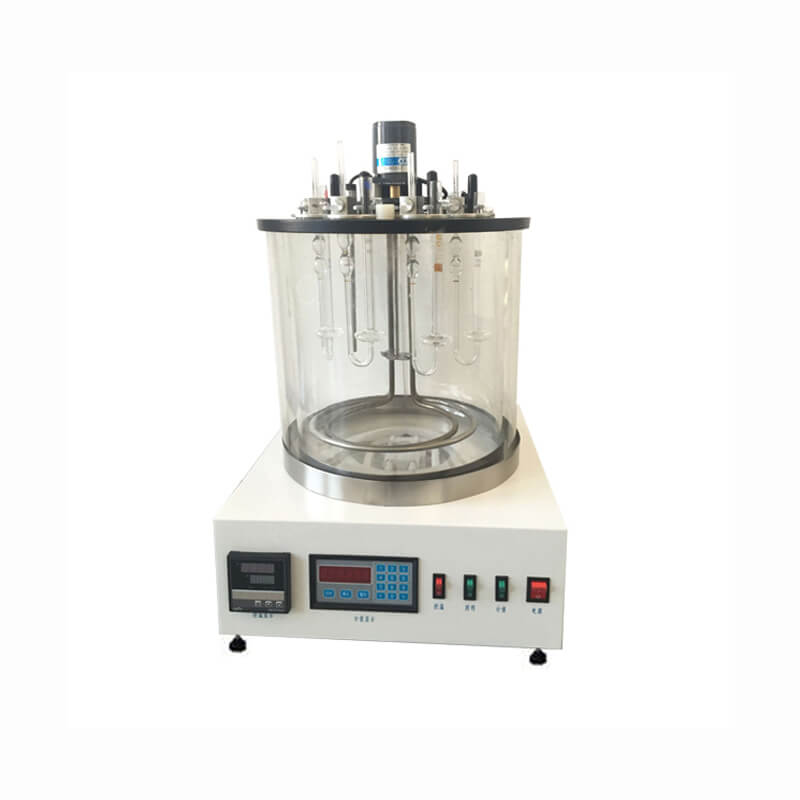

R-SY-265C

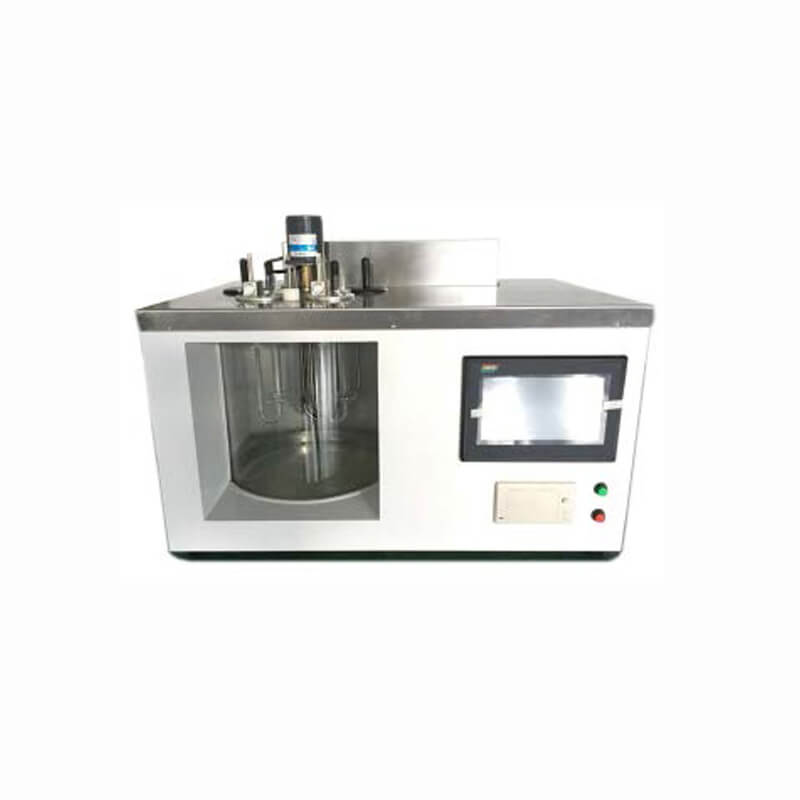

R-SY-265ZN

R-SY-265ZD

Temperature control range

R.T. -100℃

Temperature control way

Digital PID

Single chip PID

Temperature accuracy

±0.1℃

Measuring way

Timer

Auto-timing

Auto-calculating

Auto-timing

Auto-calculating

Auto-detection

Kinematic viscosity

measurement range

0.2~ 10,000mm2/s

Sample suction way

Manual

Automatic

Test sample number

4

(samples need to be tested one by one)

2

(can do separate test or comparison test)

Display mode

Timer

LCD Touch Screen

Print

/

Built-in printer

Data storage

/

Automatic

Power

1-PH, 220V, 50Hz



Features for model R-SY-265ZD:

1. Single bath two channels for two samples test.

2. It features large 7-Inch LCD touch screen HMI with beautiful outlook design with full English operating system installed.

3. Instruction interfaces are clearly displayed to provide guide for test completion. Operating status of the instrument are display, operator can understand what actions the instrument is performing and what status the instrument is at.

4. It can perform 2 samples viscosity tests at the same time or separately.

5. It features high accuracy temperature sensor to make sure temperature control accuracy to ±0.01℃.

6. Infrared sensor is applied for detection of liquid sample flows. Automatically detect liquid sample surface flow through viscometer throughout test procedure. With accurate timer, this instrument provides test results with great accuracy and repeatability.

7. It has measurement conversion function for kinematic viscosity, dynamic viscosity and Engler viscosity.

8. Whole test procedures are performed automatically without interference after operator set parameters required. Once test procedure is complete, test results are displayed, saved and printed out.

9. Large memory capacity for test results storage up to 256 groups. Test results can be reviewed at any circumstance after the test. After each test, test results are printed out in English automatically via thermal printer for fast and low-noise printing.

10. Up to 60 viscometer coefficients can be stored in system. Once the viscometer coefficient is entered into system, it can be recalled or modified at any time for testing purpose. The viscometer coefficient can be recalled automatically during viscosity calculations.

11. Fully automatic testing, timing, calculation, data storage, test results correction and self-diagnose.
