RK-TH Series

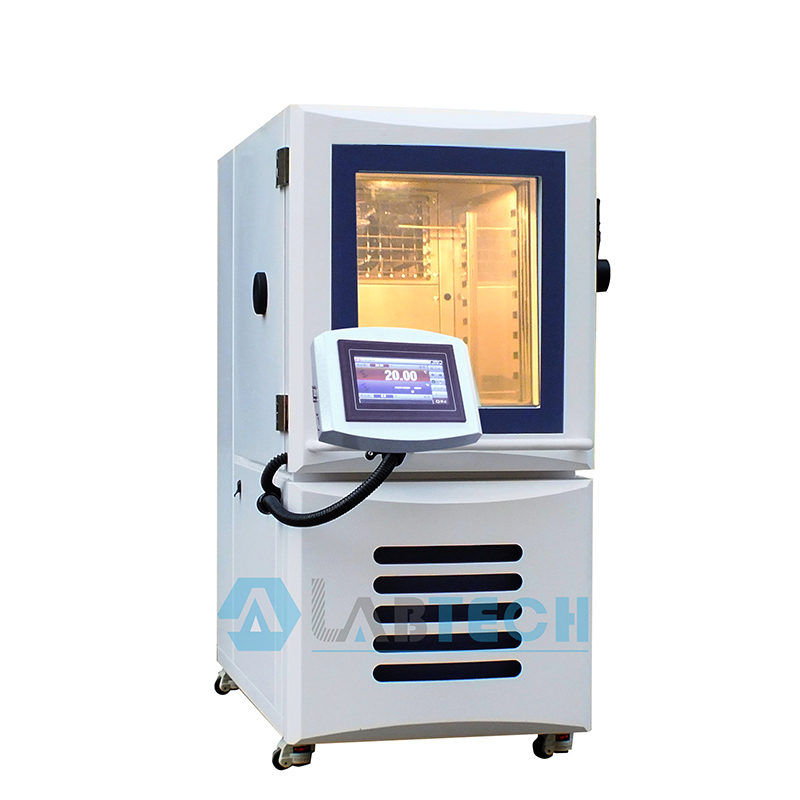

Constant Environmental Test Chamber
Constant Environmental Test Chamber is with modern and humanized design for high-end market requirements. Environmental Chambers can simulate various kinds of environmental test including standard stability test, different temperature and humidity cycling test, high temperture aging test, etc
- Product Model
- RK-TH Series
- Design Standard
- IEC60068-2, ISO16750, JESD22
Description
Application:
Constant Environmental Test Chamber is with modern and humanized design for high-end market requirements.
Environmental Chambers can simulate various kinds of environmental test including standard stability test, different temperature and humidity cycling test, high temperture aging test, etc
Test Standard:
IEC60068-2-78, IEC60068-2-30, IEC60068-2-38, IEC60068-2-66
ISO16750, JESD22
Specification:
|
Internal volume |
100L; 150L; 225L; 408L; 800L; 1000L (As per requirements) |
|
Internal&external material |
Inner SUS304, exterior Cold-rolled steel plate paint (SUS for optional) |
|
Temp. range |
-80 ℃ – 200℃ (Can be customized) |
|
Controller |
Touch Screen |
|
Compressor |
Franch Tecumseh or other brand Bock or Bizer |
|
Temp. Fluctuation |
≤ ± 0.5℃ |
|
Temp. Uniformity |
≤ ± 1.5℃ |
|
Humidity range |
Standard: 20%-98%RH; Optional:10%-98%RH; 5%-98%RH |
|
Temp. heat&cool rate |
2-3 ℃ /min heat-up ; 0.8-1 ℃ /min cool-down |
Features&advatange for Labtech Temperature Humidity Chambers:
1. External material can be stainless steel and cold-rolled steel plate baking varnish with required color for optional

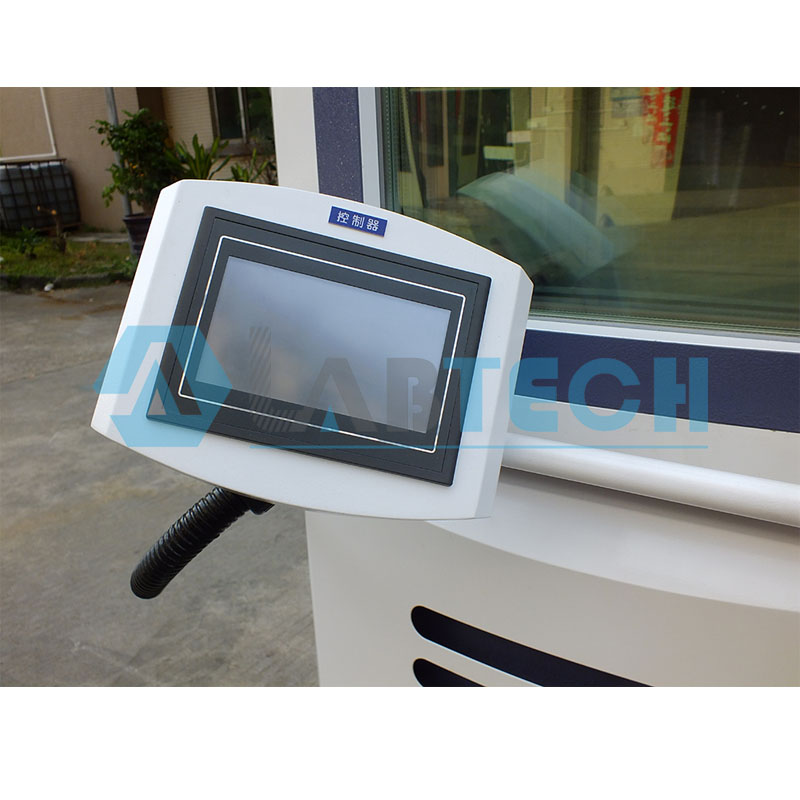

2. Movable touch screen controller with large size for test data easy reading.
3. Remote control system by mobile or Ipad is for optional to suit needs.
4. Large observation window with size 400*500mm for easy monitoring samples during test.
5. Chamber structure with unique thermal insulation to suit extreme test needs.
